LINEALIGHT

WALLWASHER
OUTDOOR LIGHTING
81594W30

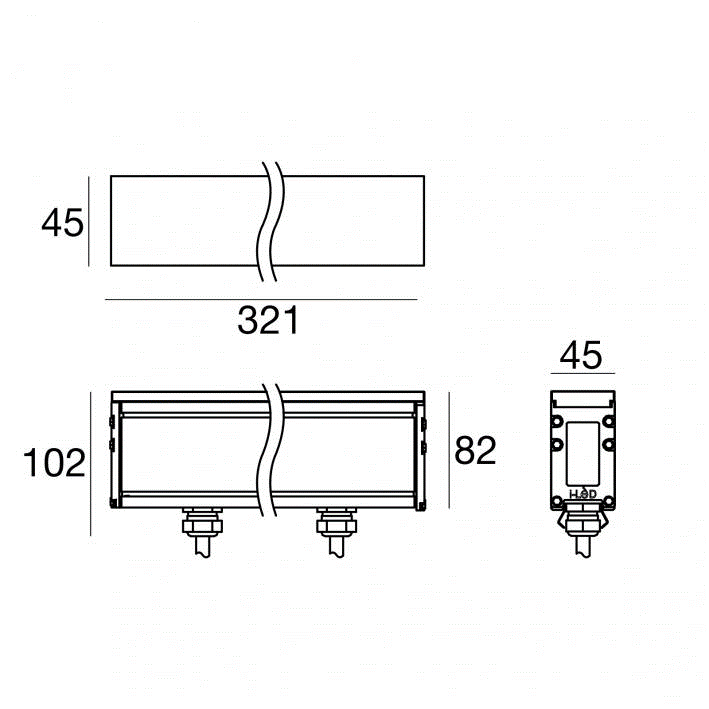

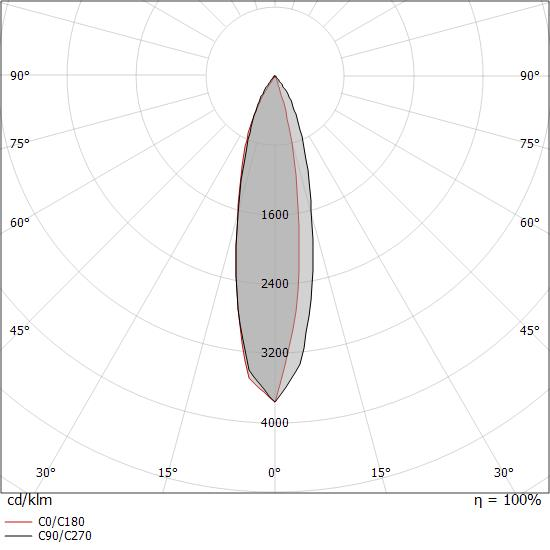

Single emission lines for outdoor application. The warm white LED light source is composed of 11 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
14W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
687LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SIMES

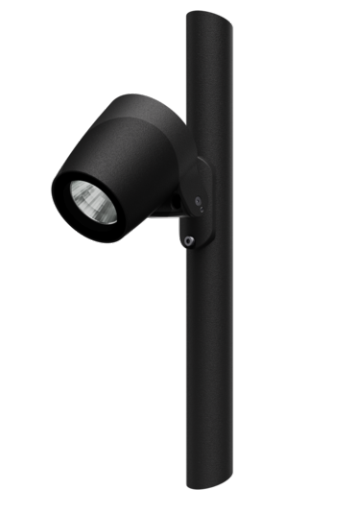

BOLLARD
OUTDOOR LIGHTING

The wiring of the fixtures must strictly respect the specifications. Shift Pole: Aluminium pole Ø 102 H 3000mm included. Pole must be fixed to the anchoring base (S.1469) to be securly buried in concrete or to the square plate (S.1468).

WIRING

Supply 0.2m cable section type H05RNF . Single cable entry sealed with B component epoxy resin, wired internally protected by silicon sheaths.. Isolation: CLASS II .

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Recessed fixed / adjustable downlight made of aluminium housing with white powder coated finish. Flexible deep anti-glare solutions for better eye protection. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Suitable for high ceiling office, retail, shopping mall projects etc application.
LUCI
LED STRIP
INDOOR LIGHTING

2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting .The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT. High efficient LED package achieving up to 185 lm/W

BEGA
SPOTLIGHT W/ARM
OUTDOOR LIGHTING

Outdoor floodlight with mounting box and outrigger arm for illuminating wall, ceiling, ground surfaces or advertising boards. Luminaire made of aluminium alloy and stainless steel, silicon gasket and clear safety glass. Reflector made of pure aluminium. IP65, IK08

DIMENSION : Ø145*L960mm
