LINEALIGHT

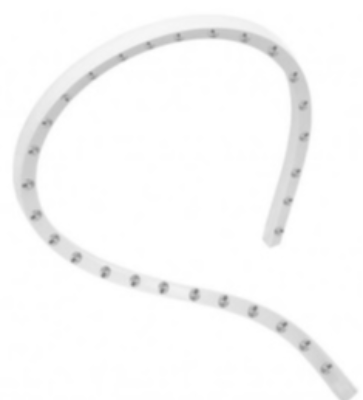

Light lines bendable in one direction (top view or side view) with a perfectly homogeneous and dot-free light surface for outdoor architectural lighting. Detailed specification text in download section. VENUS is a polyurethane encapsulated luminaire. Restistance and chemical stability against urban gases. With an efficiency up to 95 lm/W, VENUS stands out as one of the most efficient light line available to date. The various lumen output and a large panel of available CCTs turns VENUS into a modular lighting design toolkit. Fixture build to length (not field cutable): L = (N x 62.5 mm) + 26 mm; N = 3 ... 80; L = 213.5 mm: Nmax = 80; L = 5,026 mm. IP67.

Single emission led strip for outdoor application. The super warm LED light source with a flood light distribution is composed of 36 topled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67,ik08.

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

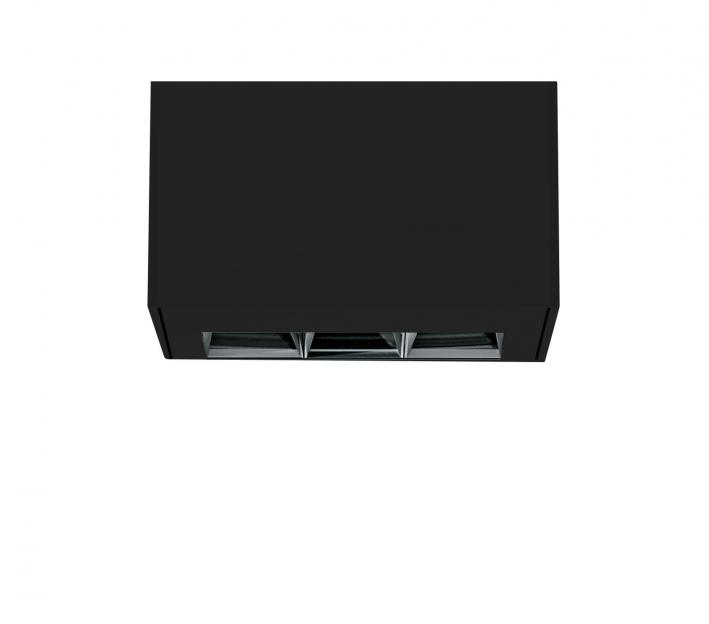

Single emission ceiling lights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 3 powerled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of PC. The ingress protection degree is IP20; the total weight is of 0.5 kg. The total absorbed power is 10.5 W. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
