82303W30

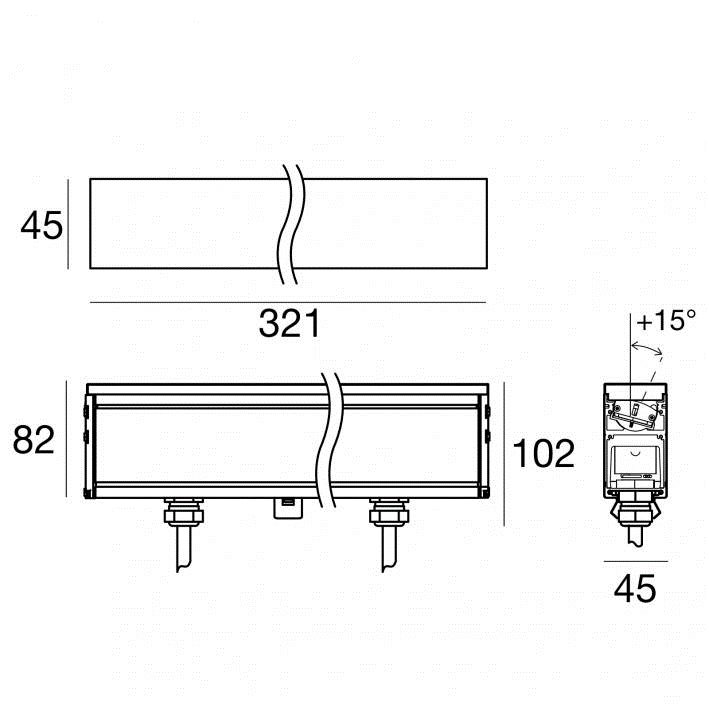

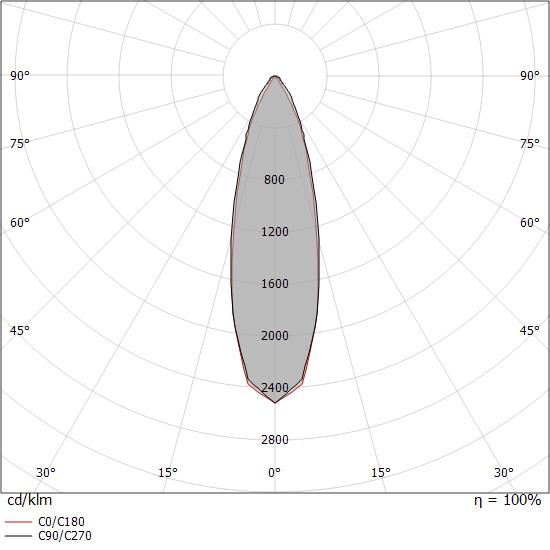

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
13.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
974LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LANDSCAPEFORMS
POLE LIGHT
OUTDOOR LIGHTING
The Typology Collection, designed and engineered in collaboration with BMW Designworks, opens a new realm of possibility in the way the urban landscape is experienced. Intelligent, systemic engineering complements existing architecture in meaningful and practical ways - defining and connecting spaces, and intuitively guiding the movement of visitors in and among them. Typology's ring light is stunning, seemingly levitating light fixtures recognized instantly from almost a mile away. Perched atop an aluminum mast, a circular strip of LEDs creates a solid ring of ambient light that, when viewed from underneath, is like a looking glass to the sky.
DALITEK
CONTROL SYSTEM
CONTROL SYSTEM

220V ± 10% 50Hz Single phase 20A. Output: 4 channels of 5A output trailing edge phase cut control (not applicable to inductor transformer dimming). Maximum total load: 20A. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure)

LINEALIGHT
LED STRIP
OUTDOOR LIGHTING

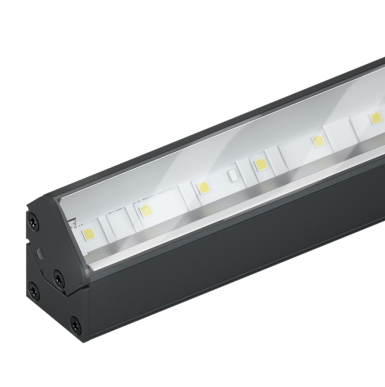

Single emission led strip for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 36 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 2300 lm, with a 115.0 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a black finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 1.710 kg. The power supply driver is not provided and is to be order

SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in mirror chrome, white and black color. Cut-out Ø150mm. For indoor use. IP20.
