LINEALIGHT

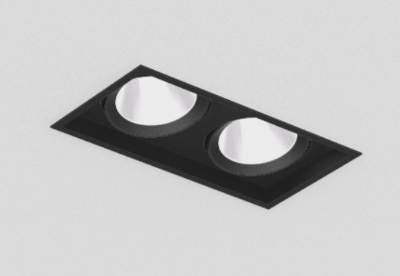

Perfect integration in the room · square design · Precision reflector for accentuation · Reflector with spherical facet optics · Rotatability 355°, pivotability 30° · Ceiling thicknesses of 10-15 mm · Adjustment with ULS ("UNIQUE LOCKING System") · 50,000 hours lifespan · High luminaire luminous flux for applications with high ceilings. IP protection type IP44: Height: 127 mm · Length: 253 mm · Width: 136 mm

Specification may be subject to change without announcement.

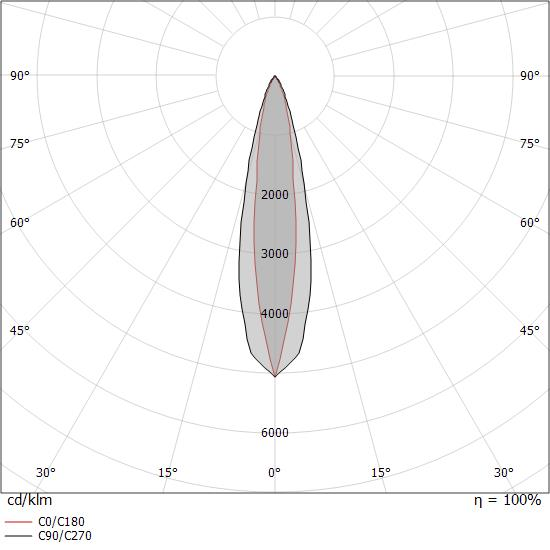

The optical data provided on the each product pages are for reference only; the data values are not guaranteed. Please use as reference materials for your planning

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Suspended luminaire come with frosted PMMA cover with lateral light emission edge. Soft light effect with complete glare illumination. With direct / indirect light distribution. Luminaire body of extruded aluminium profile. End caps of die-cast aluminium. Luminaire body white powder-coated. .Dimensions L1200*W200*H45MM
