81616W25

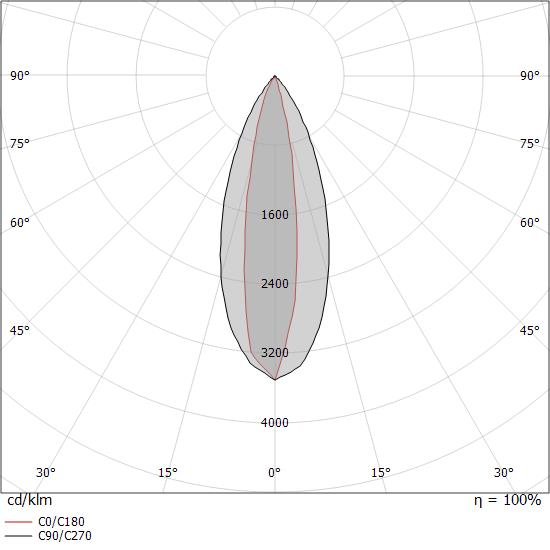

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 22 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
25W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2014LM
Finishing
ANODISED ALUMINUM
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more
