LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

81617W15

Single emission lines for outdoor application. The warm white LED light source is composed of 33 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 3 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

37.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2327LM

Finishing

ANODISED ALUMINUM

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

ELR

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

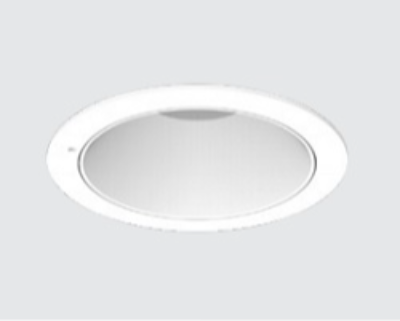

Recessed round downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 110 mm, cable entry 7 – 10 mm, for recessed or surface mounted cable, tilt range: 200°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
