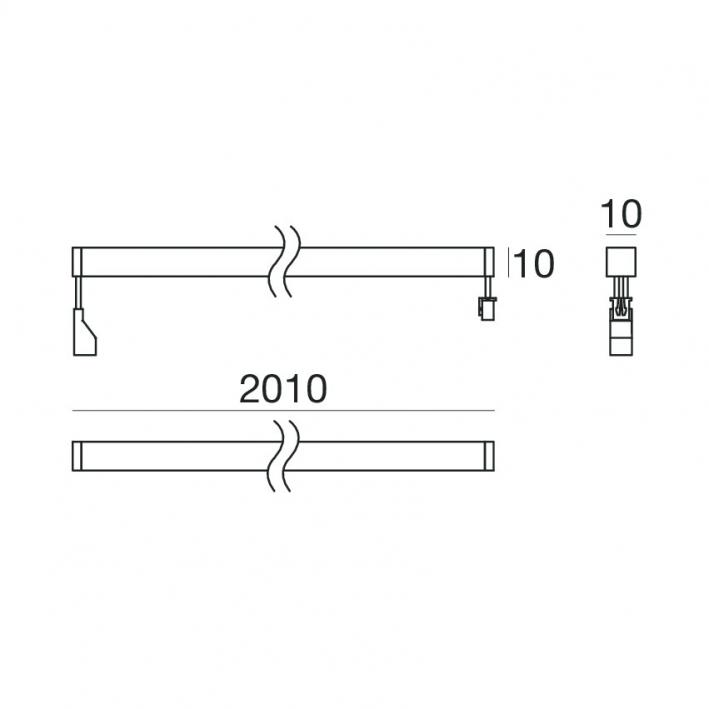

97849W00
Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 360 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.100 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
24W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
904LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

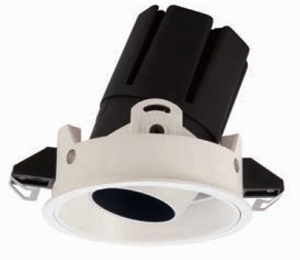

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed white ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with three flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 16

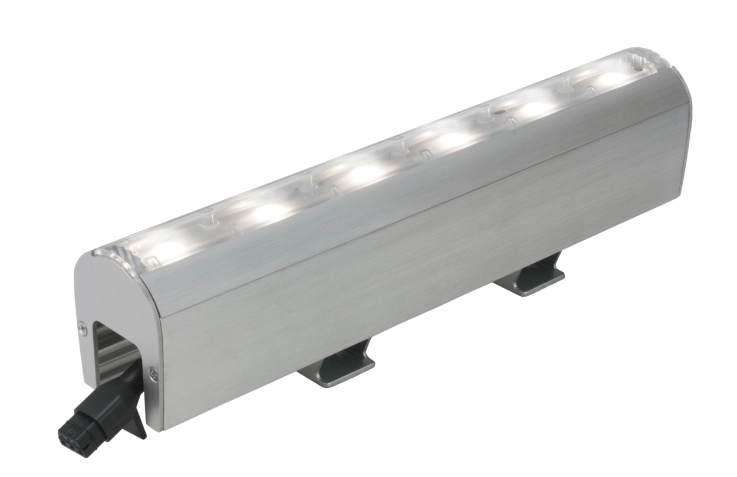

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

Single emission wall lights or lines for outdoor application. The warm white LED light source with a spot light distribution is composed of 18 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 10486 lm, with a 130.3 lm/W nominal luminous efficacy.

BEGA
POLE LIGHT
OUTDOOR LIGHTING
Luminaire made of cast aluminium, aluminium and stainless steel BEGA Unidure® coating technology. Colour graphite or silver. Synthetic cylinder, white. Connecting cable X05BQ-F 5G1mm². Cable length 4m BEGA Ultimate Driver®. Complies with flicker requirements in accordance with IEEE 1789, DIN IEC/TR 63158, DIN IEC/TR 61547-1. LED power supply unit 220-240 V x 0/50-60 Hz DC 176-264 V
