LINEALIGHT

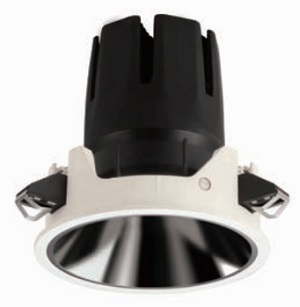

Recessed adjustable type downlight, aluminium housing, different types of beam angle.

Luminaire: cast aluminium, white (RAL9002) powder-coated, with con- nection cable L 800mm. 0°-90° tilt, 360° rotation. Flush cassette: polymer, white.

Miniaturized design meets architectural scales: Its exceptional integration makes ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and color temperatures plus a variety of light engines ranging from static white to RGBW, as well as 10°, 30° or 60° and opal optics to choose from. Polyurethane is utilized in ADONIS ARCHITECTURAL to make it more resistant to impact from salt water UV-light and solvents. High protection against vandalism thanks to a robust, powder-coated aluminum profile with an IK10 certification.

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, service life L70/B > 50.000 h, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
