LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

83887W00

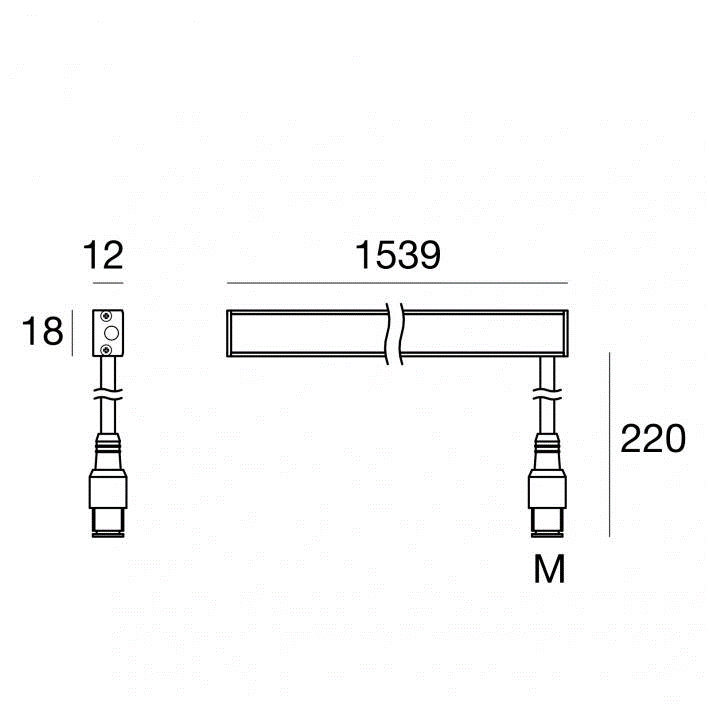

Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 180 stripled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.480 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.220 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions

Specification

Power

14W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

494LM

Finishing

ANODISED ALUMINUM

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

MEYER

SPOTLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, housing locked with a grub screw, ceiling mounting: 2 drilled holes Ø 4.5 mm, spacing 35 mm, cable gland: cable entry for recessed cable Ø 7‑10 mm , connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 37°, luminous flux: 330 lm, wattage: 5 W, delivered lumens 61 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 66 × 87 × 66 mm, weight 0.57 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016); ON-OFF Driver; System Power 28W; measurement Ø158mm; ceiling cutout of Ø145mm with a narrow mounting trim; luminaire's height is 92mm; pivot max. 30°; CCT 3000K with a System Luminous Flux of 2200lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

LINEALIGHT

BOLLARD

OUTDOOR LIGHTING

Single emission bollard & pole for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 990 lm, with a 152.3 lm/W nominal luminous efficacy.
