Product Detail | Bloxlimited

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

83891W00

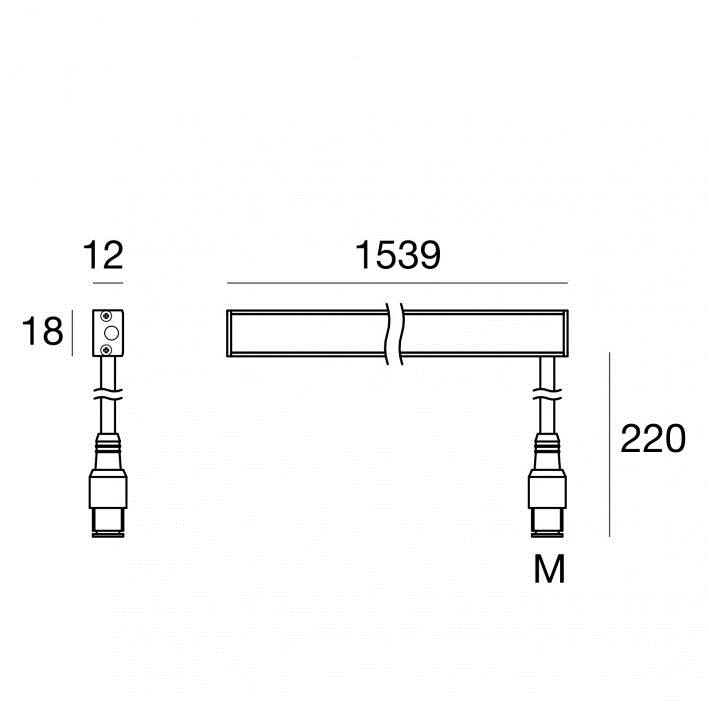

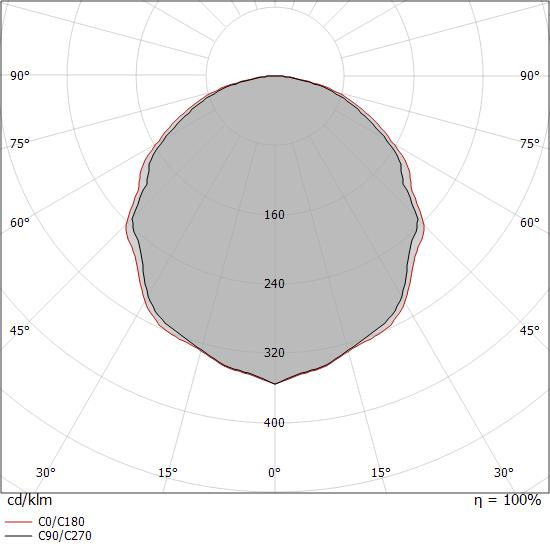

Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 180 stripled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.520 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.220 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions

Specification

Power

14W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

494LM

Finishing

ANODISED ALUMINUM

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 56 mm diameter hole (in plasterboard) with an outer casing, code 83063 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Lightplane 2.5 Wall Washer is a compact and streamlined luminaire that provides direct, indirect or direct-indirect illumination from a suspended, wall or surface mounted channel. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.

SPARK

TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with four medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
