LINEALIGHT

WALLWASHER
OUTDOOR LIGHTING
97256W08

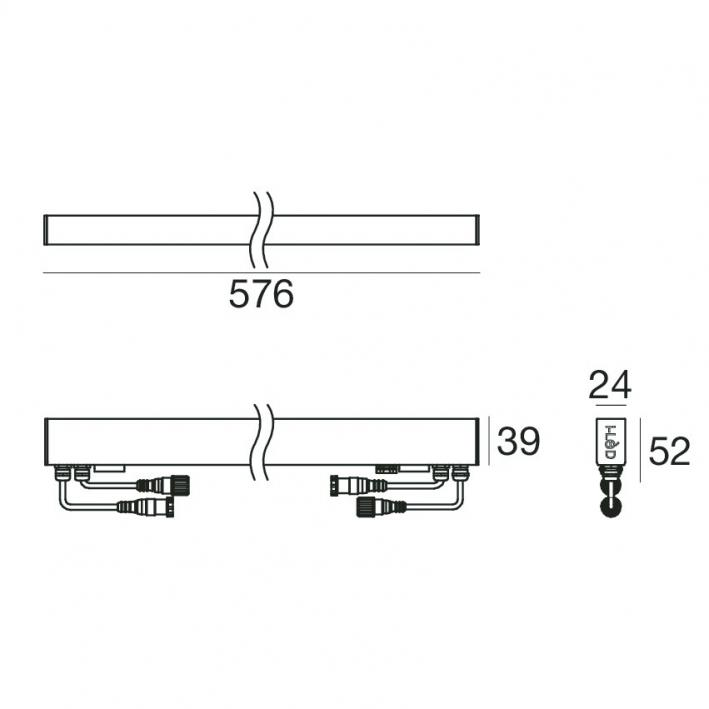

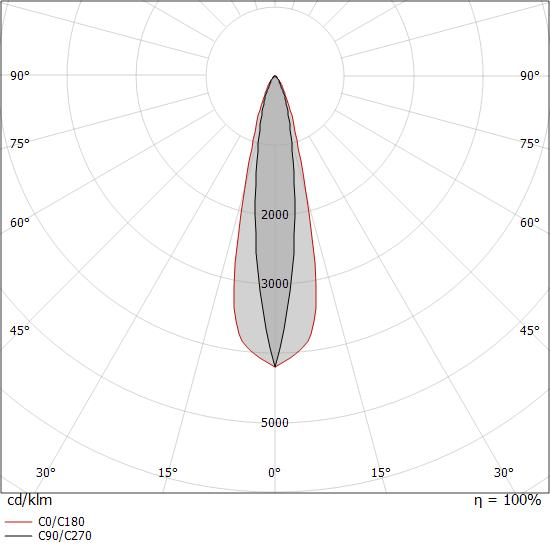

Single emission lines for outdoor application. The warm white LED light source with a spot light distribution is composed of 12 powerled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.39 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be wall lights, ceiling or floor-mounted with an outer casing, code 98843 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
7.7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
692LM
Finishing
TRANSPARENT
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LIGMAN
BOLLARD
OUTDOOR LIGHTING
Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP65,IK08.
LIGHTFORMS
SURFACE TRACKLIGHT
INDOOR LIGHTING
Lightplane 6 is a large, linear luminaire that provides direct or indirect illumination in suspended, wall and surface-mount models. The luminaire features an integral driver along with a high impact satin diffuser. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+ White.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

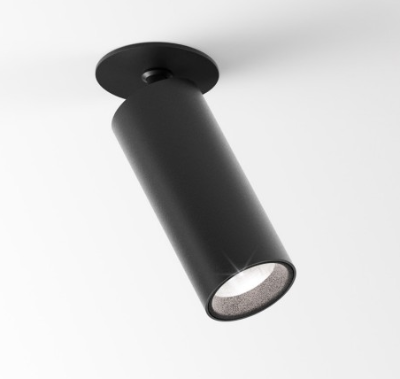

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 44 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
DALITEK
CONTROL SYSTEM
INDOOR LIGHTING

ArtCore is a compact, PoE-powered, Art-Net controller and integration gateway enabling larger systems to be assembled and intuitive lighting control achieved. Providing centralised lighting control, automation and system integration capabilities, artCore delivers solutions of scale for environments requiring robust and reliable lighting control. With its companion app or an artPlay touchscreen, artCore provides four universes of control (2048 channels) with static and dynamic.
