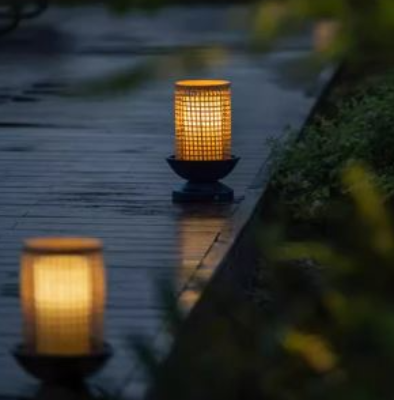

Razor is a outdoor Bollard Fixture which is mounted on the square pole at height of 900mm to cover the area of 2m front by 8m wide rectangular throw. It uses special 2 spoon optics from Bartenbach to achieve the rectangular distribution on the ground level. ixture housing is constructed with pressure die cast lamp housing body and extruded aluminum pole and other material housing grade with copper content less than 1% to have uniform outdoor grade special powder coating.

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; System Power 13W; measurements Ø78mm x 97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm; luminaire’s weight is approximately 210g; rotation 350° and pivot Max. 30°; CCT 3000K with a System luminous flux of 800lm; high color rendering at an index of CRI90.

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely.

Single emission projectors for indoor application. The natural white LED light source with a wide flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 417 lm, with a 139.0 lm/W nominal luminous efficacy.

The device body is made of aluminium alloy 6026 and features a text white ral9003 finish, processed by means of powder coating with thermosetting powders.

The ingress protection degree is IP40; the total weight is of 0.08 kg. The po
