LINEALIGHT

The Vista Plus White + Color is an AC line powered, high brightness luminaire. Controllable with DMX512, the Vista Plus White + Color is available in 200W and 400W output, 12 beam angle options, standard & custom finishes which can meet the needs for most projects.The daisy chain topology, and direct-wire nature of the fixture via the two integral cable whips allow for simple installation into existing installations and new structures, and is ideal for high-rise and tower illumination.

Single emission lines for indoor application. The warm white LED light source with a general lighting light distribution is composed of 54 topled LEDs with CCT of 3000 K and a CRI 80 the source luminous flux is 2020 lm, with a 134.7 lmW nominal luminous efficacy. The device body is made of aluminium and features a aluminium finish, processed by means of anodisation the diffuser is made of PC. The ingress protection degree is IP40 the total weight is of 2.15 kg. The power supply driver is included in the delivery. The total absorbed power is 15 W. The device features protection class I and can be wall lights or ceilingmounted, with a 43 x 1005 mm hole in plasterboard.

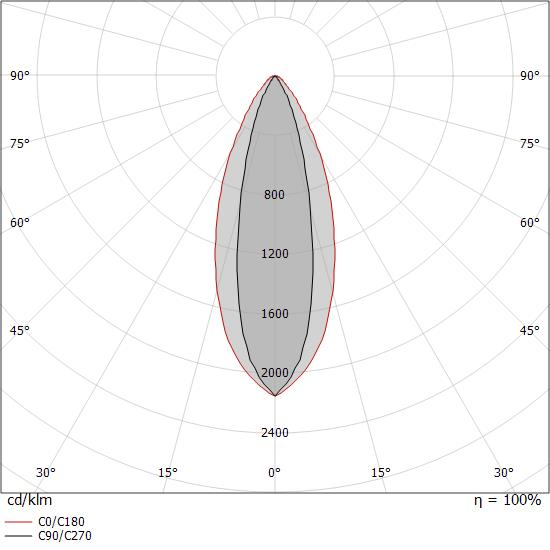

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 9 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2718 lm, with a 148.5 lm/W nominal luminous efficacy.
