81688W20
Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99763 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
14.4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1147LM
Finishing
ANODISED ALUMINUM
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

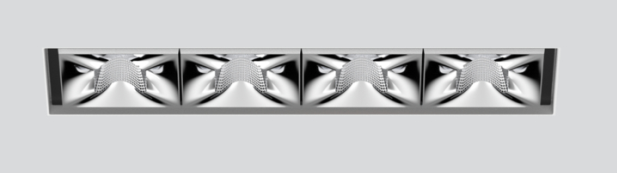

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with four medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
LINEALIGHT
RECESSED DOWNLIGHT
OUTDOOR LIGHTING

Single emission downlights for outdoor application. The super warm LED light source with a flood light distribution is composed of 1 arrayled LEDs The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67.

CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

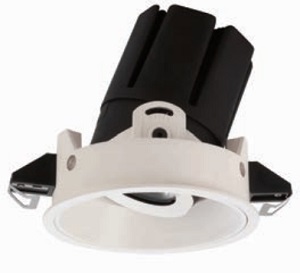

Recessed adjustable downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.
