XAL

RECESSED LINEAR LIGHT
OUTDOOR LIGHTING
BASO 60_8453524537H

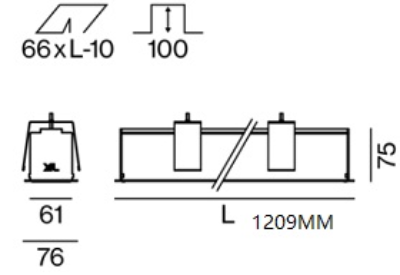

Surface white powder coated luminaire housing made of extruded aluminium profile; recessed light with wrap around edge; suitable for ceiling thickness of 8- 20 mm. Luminaire profile (end caps come pre-assembled) can be pre-mounted; remaining lamp components mounted without tools; closed light insert made of PMMA, consisting of converter unit and circuit board unit; light inset with screwedon, thus maintenance-friendly, transparent end cap in PMMA. IP54

Specification

Power
21.5W/M
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2210LM/M
Finishing
WHITE
IP Rating
IP54
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LIGHTFORMS
SURFACE TRACKLIGHT
INDOOR LIGHTING
Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.
LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
Lightplane Linear is a compact and streamlined luminaire that features integral drivers along with a high impact satin diffuser lens. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.
WE-EF
SPOTLIGHT
OUTDOOR LIGHTING
IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. DALI Interface. For 2200 K version available on request.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate with a sandblasting treatment. The ingress protection degree is IP40; the total weight is of 0.429 kg. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 89 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
