IGUZZINI

RECESSED LINEAR LIGHT
OUTDOOR LIGHTING

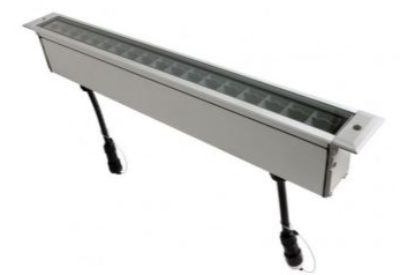

LINEALUCE_BW27
Direct light luminaire, designed to use Warm White monochrome LED lamps, and a flood optic with non-slip glass. Ground-, wall- and ceiling-recessed. Consists of a body and outer casing for installation, to be ordered separately. Extruded aluminium body, with diecast aluminium end caps complete with silicone seals. IP67,IK09.

Specification

Power
12.4W/M
Color Temperature
3000K
Light Source Type
LED
Lumen Output
612LM/M
Finishing
GREY
IP Rating
IP67
Color Rendering
CRI>80
Driver
PWM

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 52 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
PLATEK
INGROUND UPLIGHT
OUTDOOR LIGHTING

Outdoor inground uplight body and front locking trim in AISI 316L stainless steel. IP68 Degree of protection with Full Dry system which avoids condensation inside the product. The Installation of the recessed housing in cast concrete with a 20-30 cm gravel soak away. Only an IP68 connection to the power supply can guarantee the same protection to the fixture. IK08

SPARK
INGROUND UPLIGHT
OUTDOOR LIGHTING

Outdoor inground uplight anti-glare and double waterproof structure design.

Easy to hide and install without destroying the original environment. Nearly

zero distance against the wall, wash the wall evenly. Built-in modular

integrated lens with high light efficiency. Zero luminous depreciation at

3000hrs, long lifespan with low power consumption, 70%-80% energy-

saving and environmental friendly. Designed for versatile use in outdoor

lighting application.


SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Suitable for high ceiling shopping mall, hotel, office tower application.
