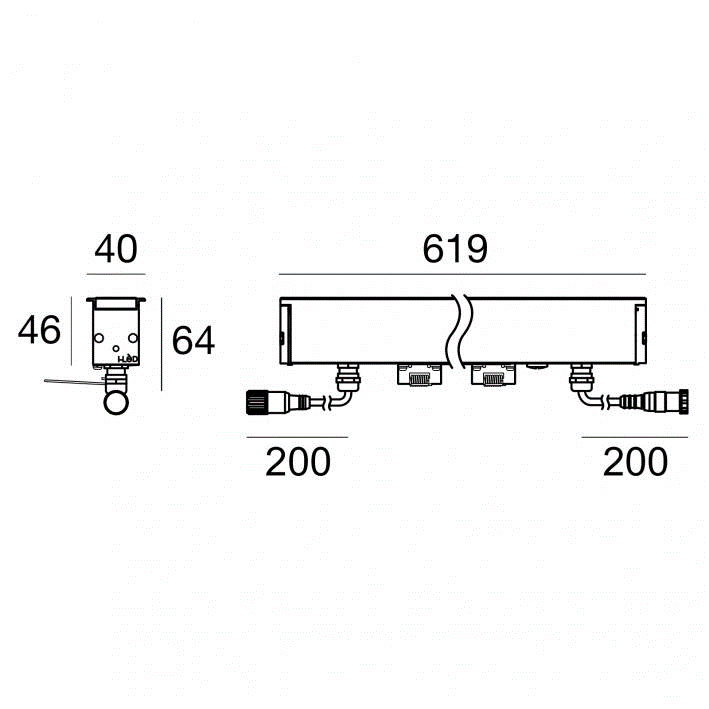

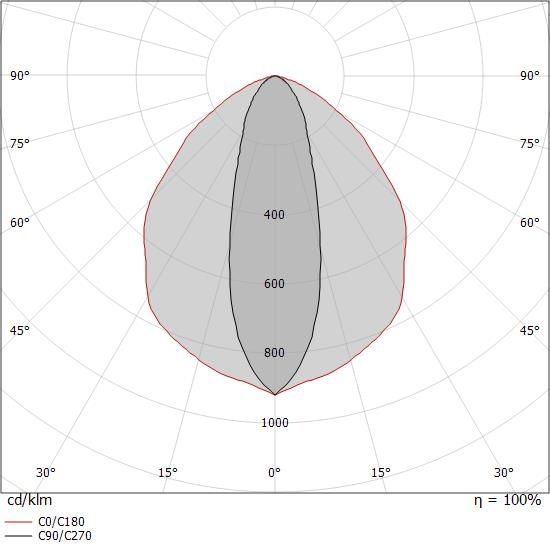

81466W20
Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
16.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1301LM
Finishing
ANODISED ALUMINUM
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

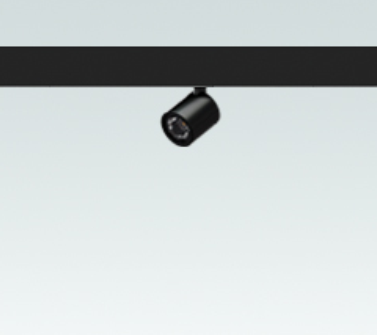

SPARK
SURFACE MAGNETIC TRACK PENDANT
INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.

ENDO
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Surface mount spotlight made of aluminium housing and dark grey finishing. 355° rotation and driver integrated.
SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
BEGA
UNDERWATER LIGHT
OUTDOOR LIGHTING

Luminaire made stainless steel Steel grade no. 1.4301 – electropolished Clear safety glass Silicone gasket Reflector made of pure anodised aluminium Swivel range 90° Mounting bracket with 2 holes ø 7mm · 45mm spacing water-resistant connecting cable H07RN8-F 3G1@ Cable length 4m LED power supply unit 220-240 V y 50-60 Hz Safety class I Protection class IP 68.
