LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

81690W90

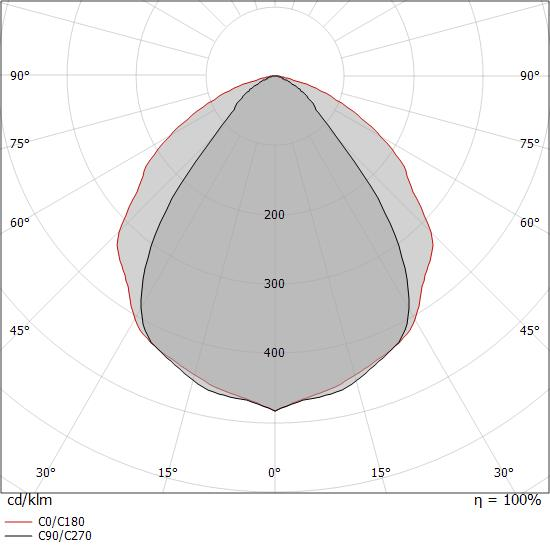

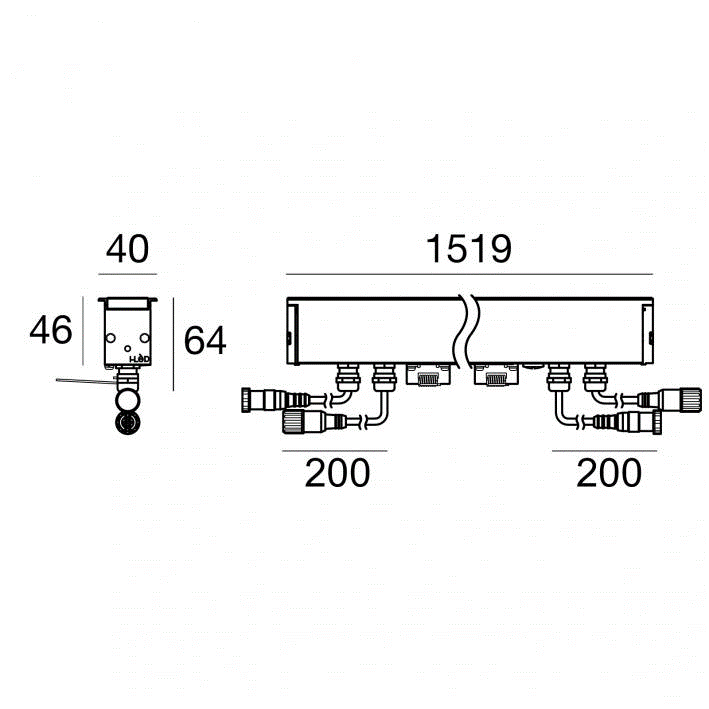

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.500 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99765 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

24W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1990LM

Finishing

ANODISED ALUMINUM

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

IGUZZINI

SURFACE LINEAR LIGHT

INDOOR LIGHTING

Ceiling-mounted luminaire with 15 optic elements for LED lamps - fixed optics with metallised thermoplastic high definition Opti Beam reflectors. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient luminous flux and a high level of controlled glare visual comfort. Extruded aluminium main body and technical dissipation unit shaped steel fixing plate. Ballast not included, available with separate code.

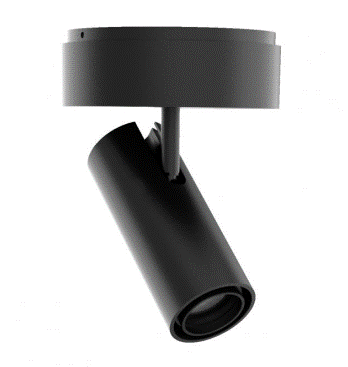

SPARK

SURFACE MAGNETIC TRACK SPOT

INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.

DALITEK

CONTROL SYSTEM

INDOOR LIGHTING

HDR-20 is one economical unit slim 30W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is design 35mm (2SU) in width, which allows space saving inside the cabinets. The entire adopts the full range AC input 85VAC to 264VAC (277 VAC operational) and conforms to EN61000-3-2, the form the European Union regulate for harmonic current. HDR-30 is designed with plastics housing that it can effectively prevent user from electric hazards.
