LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

82330W25

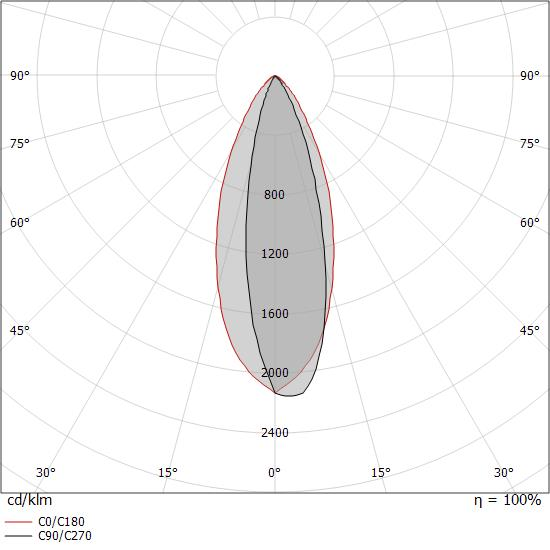

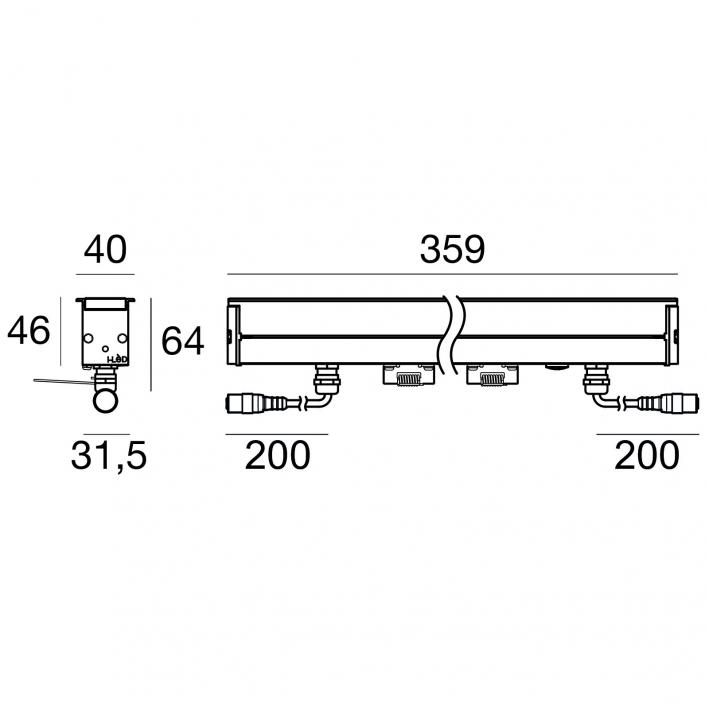

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.510 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99912 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

8.3W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

400LM

Finishing

ANODISED ALUMINUM

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

XAL

WALL LIGHT

INDOOR LIGHTING

Rectangular wall surface mounted uplight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface black powder coated; equipped with one light inset; high quality reflector with micro-faceted, aluminum-vaporised surface; homogeneous wall or ceiling illumination through uniform light distribution; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC1; suitable for through wiring; incl. converter, non dimmable; light source not replaceable; control gear replaceable by an authorized professional;

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.

PHOS

ADJUSTABLE DOWNLIGHT

OUTDOOR LIGHTING

The Eyeconic Mini Trim Adjustable is a recessed, directional downlight with a Ø62mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. 360° rotation and 28° tilt. Part of a wide family range of fully modular luminaires.

PROLICHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

The rimless spot OIKO from the familiy OIKO consists of aluminum-die-cast. With 2 powder coated options 625 colour combinations can be achieved. Stated photometric values correspond to operation by 500 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 120-0195) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings.
