82326W90
Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
10.1W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
309LM
Finishing
ANODISED ALUMINUM
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


IGUZZINI
LINEAR LIGHT
INDOOR LIGHTING

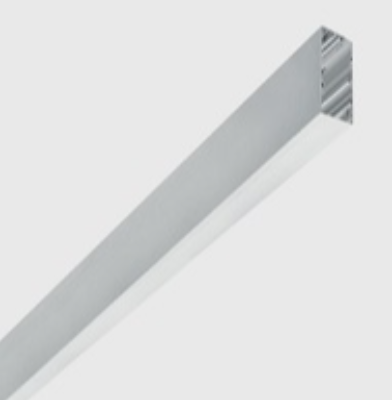

Direct emission modular lighting system with LED lamps. Initial module for general lighting (Low Contrast); can be used independently or in a continuous line. Minimal (frameless) version extruded aluminium single length profile; methacrylate opal screen set up for connection to end caps on both sides. Installation can be recessed, surface-mounted (ceiling/wall), or pendant. The module must be completed with the accessories kit needed for the selected type of installation.
