82327W20

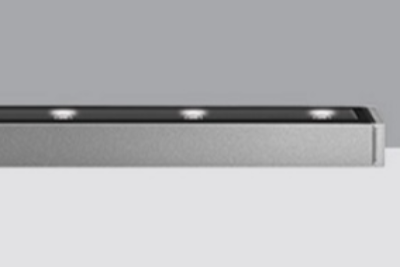

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
14.4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
508LM
Finishing
ANODISED ALUMINUM
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

IGUZZINI
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed luminaire consisting of a lamp device, 9-cell emission raster and operating components. Version for UGR < 19 controlled luminance lighting - in compliance with the standard for use in environments with video monitors. LED lamps with high color rendering index. Main body made of extruded aluminium - anodised finish - cast zamak end caps - natural finish. Polycarbonate LED lamp support. Steel wire fixing springs. The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.
LUCE & LIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed downlight for indoor applications; recessed (ceiling); Power consumption: max 6W; Power supply: max 500mA; Lumen output at source:

436 lm (3000K, 500mA); Delivered lumen output: 348 lm (3000K, 500mA, 24°); 3 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour:

2700K; Optics: 12°; CRI Colour Rendering Index: 80; Body material: body in aluminium, trim in brass; Finishes: gold; RAL finish on request;

Thickness of installation surface: min 5 mm, max 25 mm; power supply unit not

LUCE & LIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

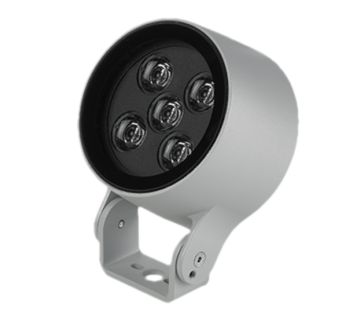

Surface mount outdoor projector body material made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe. Bracket made of tumble-finished, painted aluminium 5754. IP66, IK09

DIMENSION : Ø84*L149MM

NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; measurements Ø110mm x 79mm; narrow mounting trim with a cutout of Ø100mm; ceiling thickness 1-30mm; luminaire's weight is approximately 420g; CCT 3000K with an System luminous flux of 1150lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
