82327W50

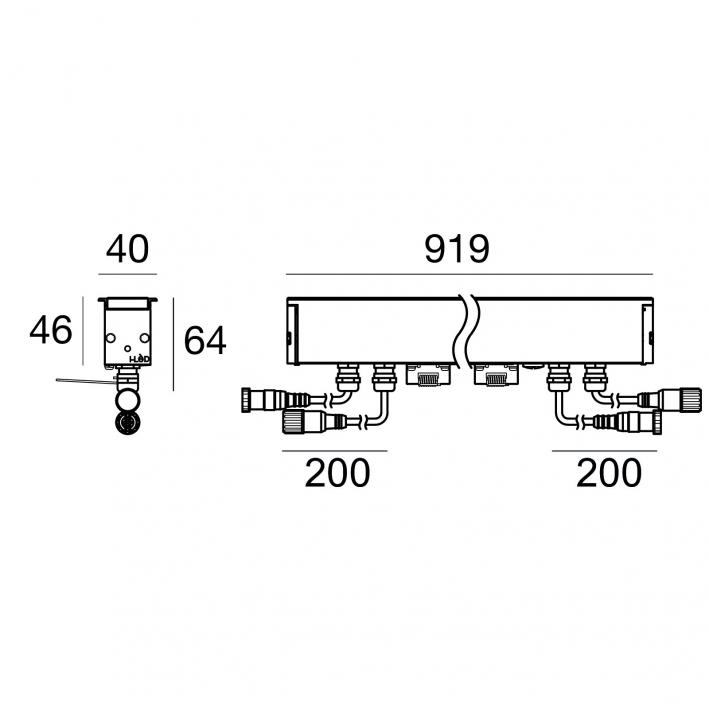

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
14.4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
567LM
Finishing
ANODISED ALUMINUM
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LUMASCAPE
INGROUND UPLIGHT
OUTDOOR LIGHTING


LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.1 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 44 x 44 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING

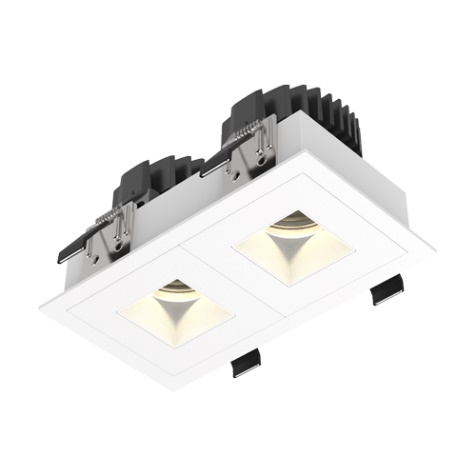

Square recessed double head downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 2*13W; measurement 155mm x 85mm; ceiling cutout of 145mm x 75mm with a narrow mounting trim; rotation 355° and pivot max. 30°; CCT 3000K with a System Luminous Flux of 2*520lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54); impact resistance of the luminaire is in the class IK06; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
DALITEK
CONTROL SYSTEM
CONTROL SYSTEM

12VDC power input 10 keys programmable control panel, each button is internally illuminated, with free customization of engraved keycaps, stainless steel surface, RS485 communication interface.
