Product Detail | Bloxlimited

LIGHTFORMS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

LF156763

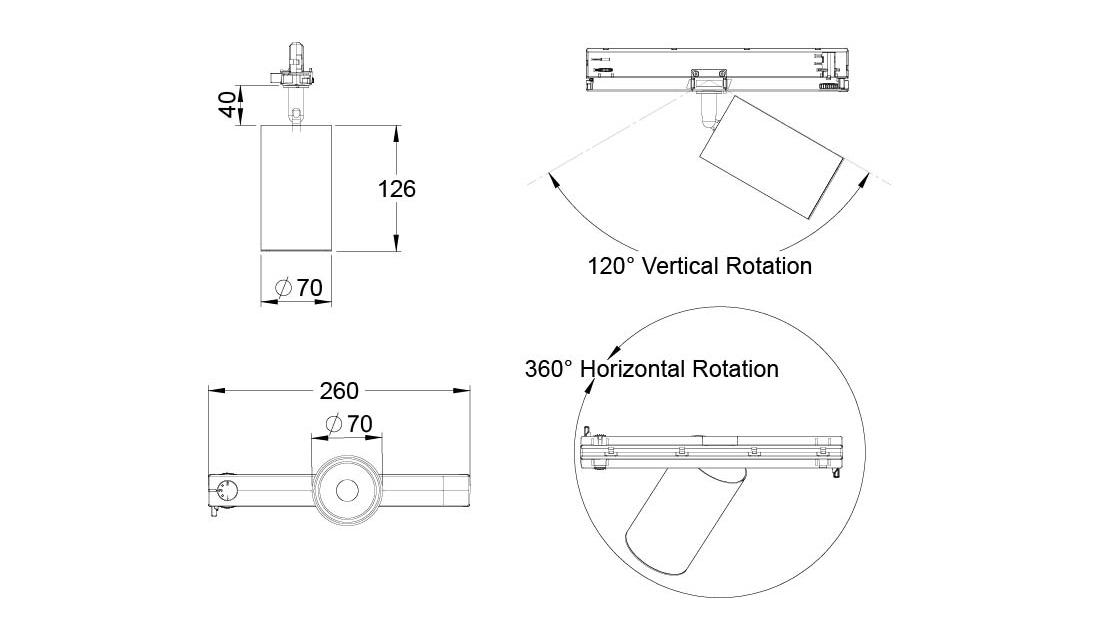

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.

Specification

Power

24.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2475LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 3424 lm, with a 148.9 lm/W nominal luminous efficacy.The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; the total weight is of 2.084 kg.The total absorbed power is 26 W. The power supply cable is included and features a 1 m length.The device features protection class I and can be wall lights, ceiling or floor-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

FLOS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Eclectic Ø90. Adjustable Downlight (40º tilt, 360º rotation). “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 41º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP20.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 44 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

DALITEK

CONTROL SYSTEM

INDOOR LIGHTING

DR485S-D is a connection device for LDS lighting control system and interface for sensors (max 25). DR485S-D combined with a programmable logic controller which handle conditional, sequential logic and operation functions. Error messages can be filter out for better tranmission and accuracy of information. DC12V, 200mA. Control input: 2 × RS485 network serial port. DIN rail installation
