The SCMH0410-G2 is an indispensable addition to our family of DIN rail source controllers. Bringing together the best of our compact switching and DALI, 0/1-10V control products, the result is a compact yet powerful controller that supports innumerable applications, both in networked systems and as a standalone room controller. Each of the four volt free contacts can be switched independently or in tandem with the signal lines, switching up to 10A of load, they can just as easily be employed to control ancillary items such as local HVAC, air handling units or other non-lighting devices. All switched outputs are phase independent and support AC, DC or volt free contact switching applications. With an integral power supply, SCMH0410-G2 has sufficient capacity to support 50 DALI ballasts or 30 0/1-10V ballasts per signal output. Eight inputs provide the opportunity to connect a wide range of peripheral volt free contact devices, such as simple momentary action switches, door/window contacts, alarm inputs or presence/absence detectors. With iLight network connectivity, the SCMH0410-G2 can be linked with a virtually limitless number of other iLight products to build a system of any size.

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification may be subject to change without announcement.

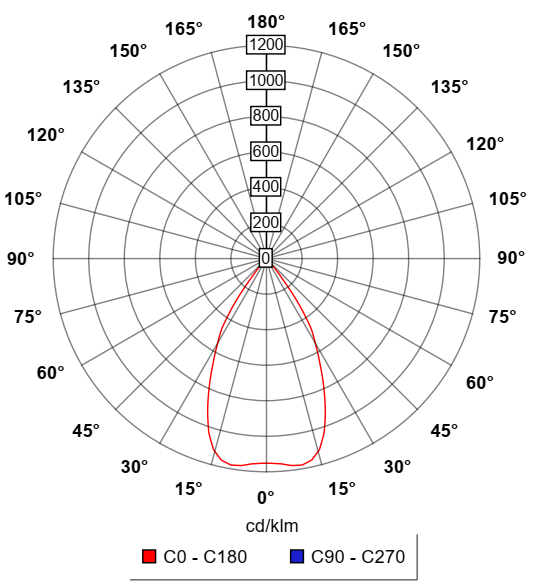

The optical data provided on the each product pages are for reference only; the data values are not guaranteed. Please use as reference materials for your planning
