Product Detail
Home Products Detail

Products

LIGHTFORMS

SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
LF156879

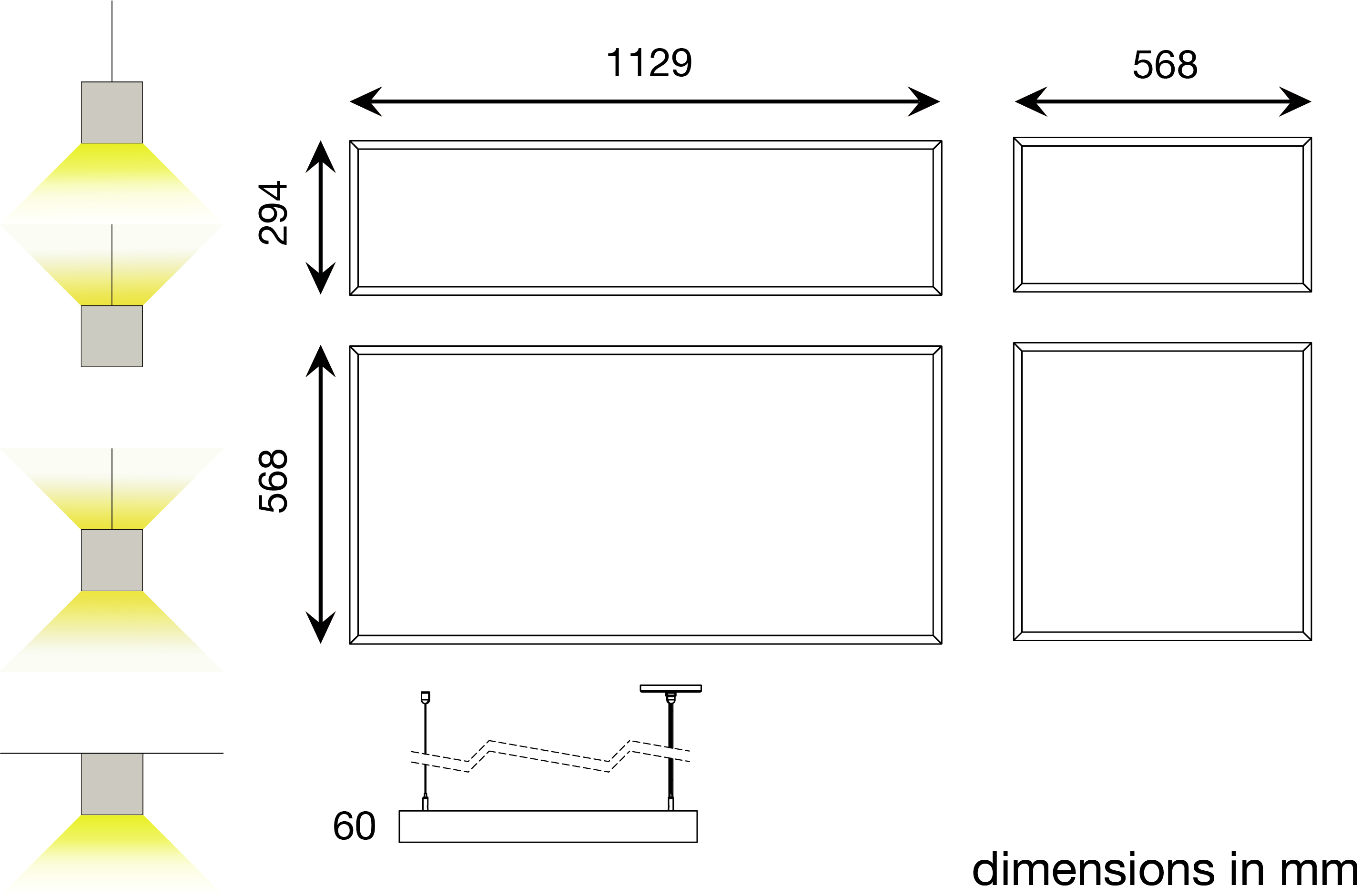

Light Panel Up & Under is a rectilinear panel available in a number of sizes. The fixture provides good output and efficiency with a clean and simple architectural design. Choose either direct only output or both indirect and direct.

Specification

Power
26.8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
3963LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING
IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 1.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.
PUK
FLOODLIGHT
OUTDOOR LIGHTING
Floodlight for outdoor installation on a façade/wall, with U shape fixing bracket allowing vertical adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets, with screws in stainless steel. Built-in LED driver, with 1 COB CREE “CXB 2540” LED. IP66 rating.
LUCI
LINEAR LIGHT
INDOOR LIGHTING
RIMiT mr. round and compact design with only 8.8mm in diameter, supports a wide range of designs making your design ideas come to life.The light fixture can be customized into 60 different lengths from 33mm to 1508mm.Round dotless lines with 8.8mm diameter.
SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
