LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

LF156894

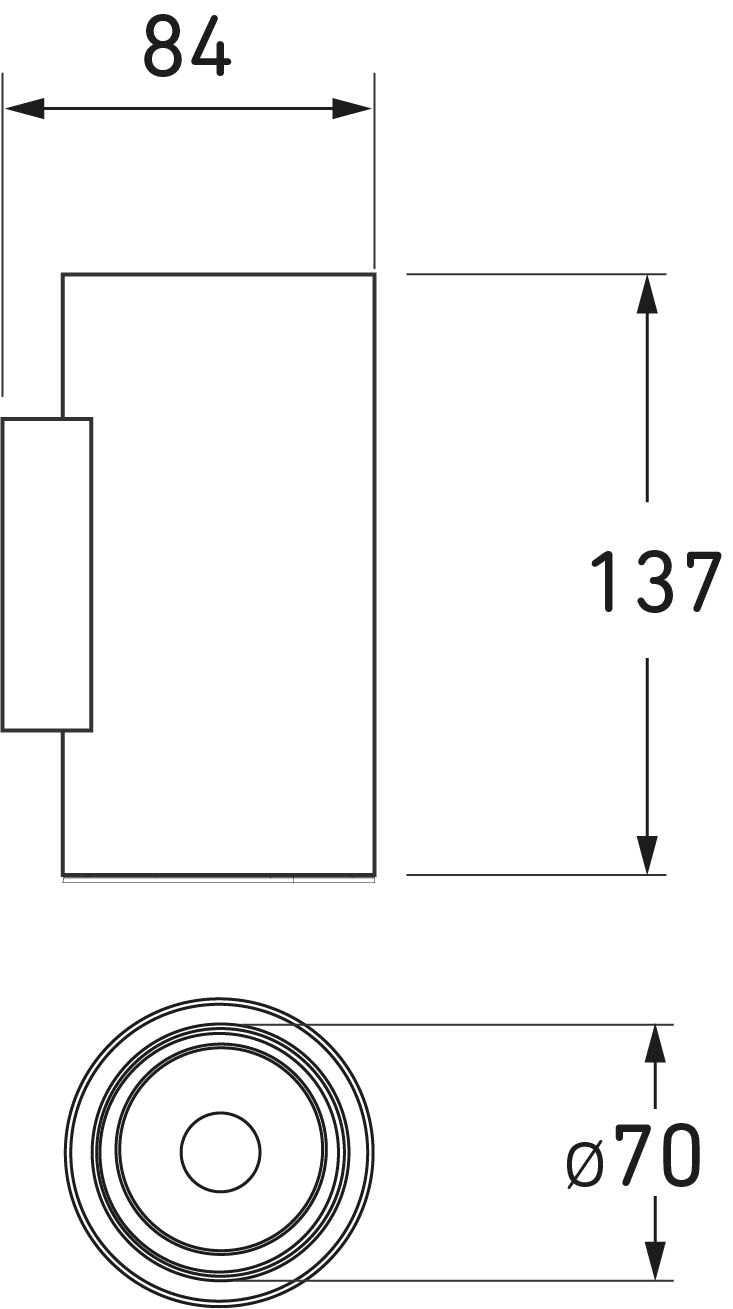

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.

Specification

Power

13.6W

Color Temperature

3000K

Light Source Type

LED

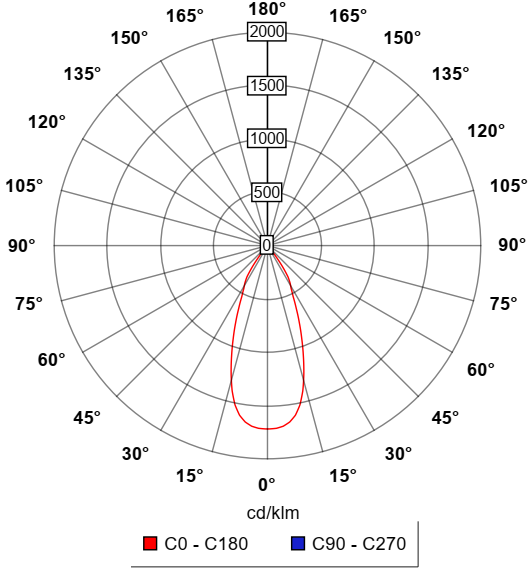

Lumen Output

1435LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

BEGA

INGROUND UPLIGHT

OUTDOOR LIGHTING

Recessed inground uplight luminaire ,made of stainless steel. Housing made of aluminium profile, powder-coated with 2 entries for connection cable up to ø 12mm.Drive-over luminaire from vehicles with pneumatic tyres. Dust-tight and water pressure tight.. IP67,IK09. DIMENSION:(W)400 x(HEIGHT)100x(D)55mm.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

user 6 mm thick. Electronic driver 220V/240V 50Hz. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Silicone gaskets. Recessing box in aluminium. Fast connector IP68 included.

ARTEMIDE

INGROUND FOOT LIGHT

OUTDOOR LIGHTING

Light fixture with high-performance LED light sources. Drive-over recessed floor installation with floorprotruding cap. All the versions are drive-over up to 5000Kg. Due to the low height of the cap, Megara 90 is also suitable for installation in walk-over areas, being careful to avoid areas of direct transit. Composed by body, cap, diffuser, recessing box. Body and cap in painted EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined three-pole connection cable. Electronic ballast integrated in the body. Diffuser in UV resistant polycarbonate.Power connection to the mains by means of the IP67 connector supplied with the light fixture, which can be housed in the recessing box and is suitable for cables with a diameter from 5 to13.3 mm. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Recessing box for laying in reinforced polymer to be ordered separately. Radial emission beam optic. White monochromatic LEDs available in 3 colour temperatures in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67.ENEC approved.Insulation class I.
