LIGHTFORMS

Round Lightplane 2 is a compact and streamlined cylindrical luminaire that features integral drivers along with a high-impact satin diffuser lens. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. Available in suspended or wall scone (contact factory) models.

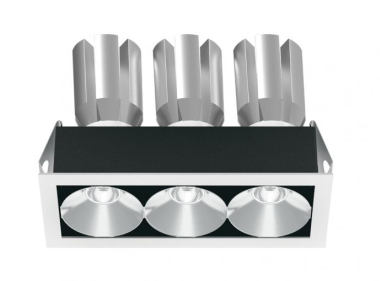

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.36 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

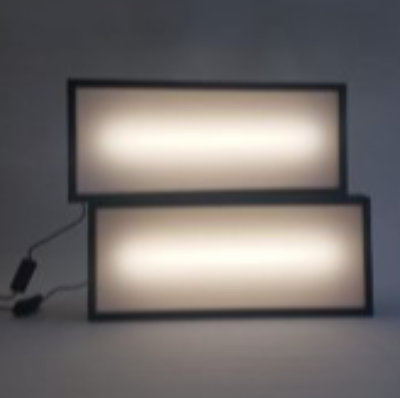

EX-IL1 ILUMINATOR LIGHTBOX CUSTOMIZED

recessed for outdoor applications; recessed (ceiling); Power consumption: 45W; Power supply: 110-230Vac; Lumen output at source: 4140 lm (3000K, CRI 80); Delivered lumen output: 3659 lm (3000K, 18°, CRI 80); 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 61°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter; CRI Colour Rendering Index: 80;
