LIGHTFORMS

RECESSED LINEAR LIGHT

INDOOR LIGHTING

LF157024

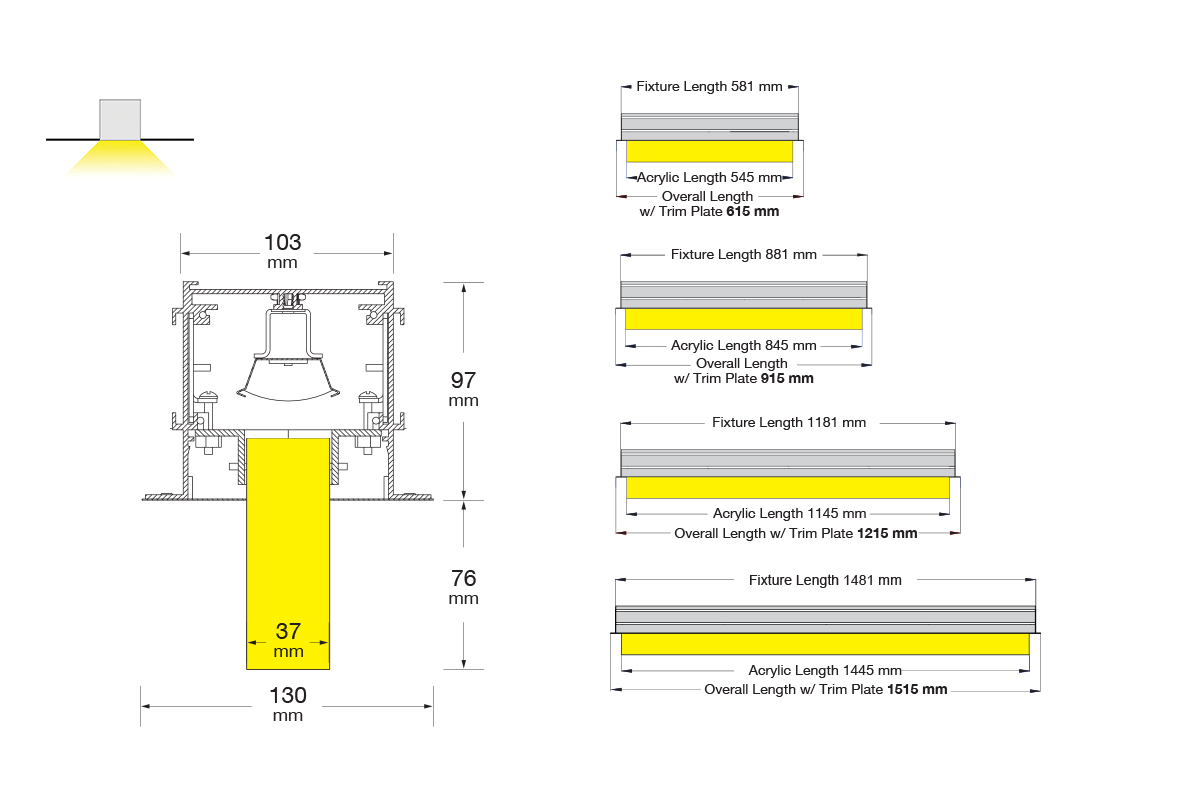

GlowBeam Recessed is a recessed luminaire that once installed has the appearance of surfacemounted fixture. An acrylic light conveyor “blade” extends down from the ceiling plane to provide ambient illumination. The acrylic blade is available as either fully frosted (OPAQ) or translucent with the end- and bottom-sides frosted (TRANS). The luminaire is specifiable in four lengths ranging from 615-1215 mm.

Specification

Power

37.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1715LM

Finishing

TRANSLUCENT

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

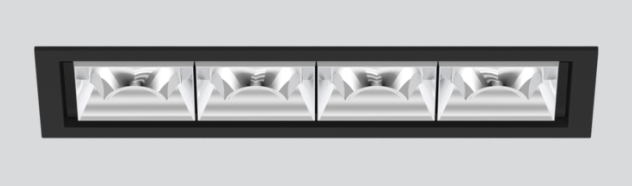

Recessed adjustable rectangular downlight luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable square downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 537 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.215 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
