LIGHTFORMS

RECESSED LINEAR LIGHT
INDOOR LIGHTING
LF157031

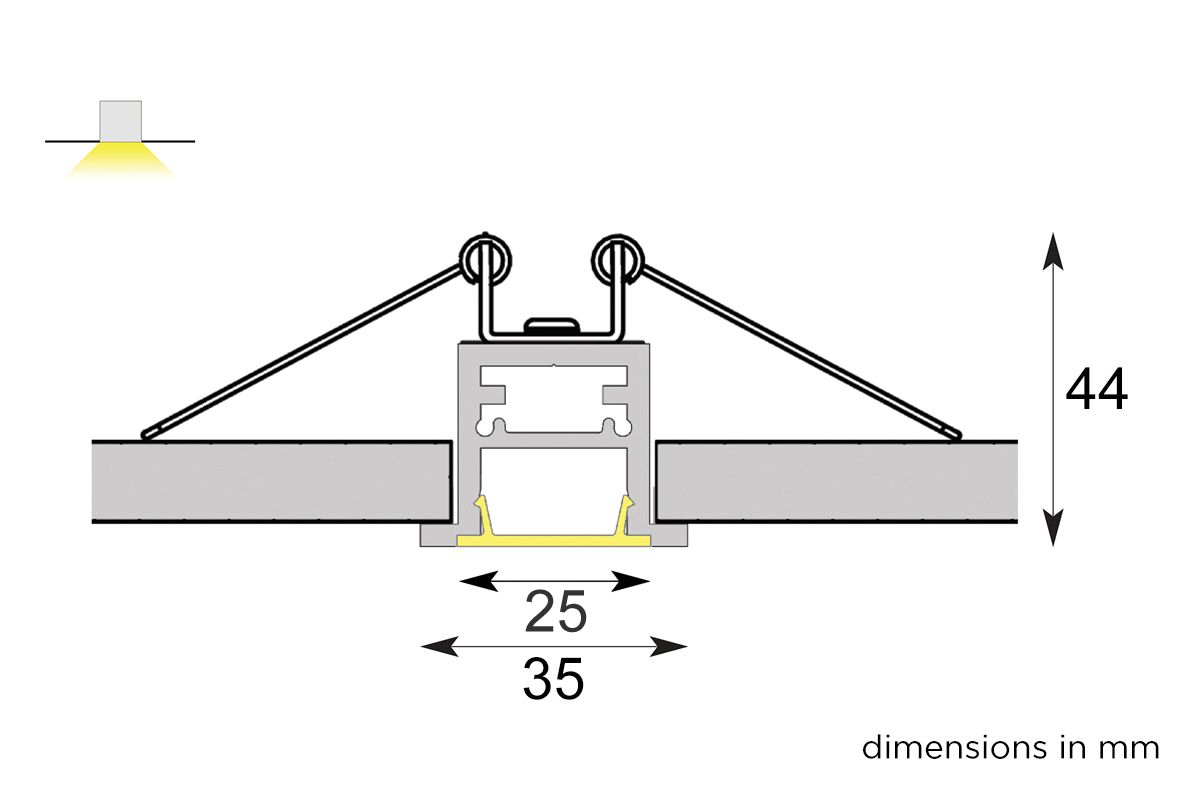

Lightplane 1 Recessed Trim is a discreet, recessed fixture with a 25mm linear lens. Choose either a flat or tapered, chamfer aluminium trim. This small channel allows for minimal linear lighting in a recessed application. Driver is REMOTE.

Specification

Power
37.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2027LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
Lightplane 1 Concave is a suspended, wall or surface mounted luminaire with direct, indirect or direct-indirect distribution. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. With a cross section dimension of just 50mm, the Lightplane 1 Concave body houses a LED driver integral to the channel creating a remarkably low-profile luminaire.
LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
Lightplane 2.5 is a compact and streamlined luminaire that provides direct, indirect or directindirect illumination from a suspended, wall or surface mounted channel. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.
XAL
WALL LIGHT
INDOOR LIGHTING

Cylindrical wall surface mounted luminaire made of aluminium housing and available in 2 sizes. Symmetric direct or direct/indirect light distribution. Homogeneous wall or ceiling illumination through uniform light distribution; precise radiation characteristic due to high quality lens system. COB (Chip on Board) technology for maximum efficiency; no multiple shadows; efficient LEDs with very good colour rendering. DIMENSION : L113MM * W103MM * H126MM

LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 322 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 3000 lm, with a 103.4 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
