LIGHTFORMS

SURFACE MOUNTED LIGHT
INDOOR LIGHTING
LF157033

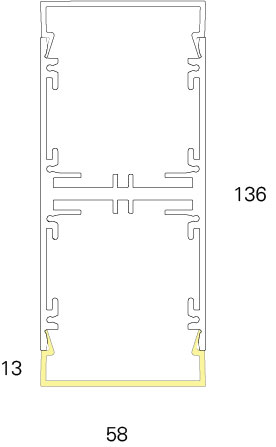

Lightplane Linear Up & Under is a compact and streamlined luminaire with a single extruded aluminium channel that provides both direct and indirect illumination. Integral driver configuration with flush lens. Individual or continuous row mounting.The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+ White.

Specification

Power
37.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
3216LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

XAL
RECESSED DOWNLIGHT
INDOOR LIGHTING

Round recessed spotlight luminaire is made of die-cast aluminium housing. 1 lamp; surface matt silver. 360° rotatable and 30° tiltable. Installation without tools in mounting set due to patented ball catch system. Round installation housing. Suitable for ceiling thickness of 2-25 mm. Passive cooling of the LEDs through improved heat sink geometry. With COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.

LUCI
LED NEON TUBE
INDOOR LIGHTING

Compact, side-bended homogenize bendable linear light cuttable every 50mm at site. Ideal choice to avoid unpleasant dot reflection for curved lighting.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.
