LED LINEAR

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.

Surface mounted (ceiling, wall, ground, spike). 25W, 24Vdc, 1890 lm source / 1575 lm delivered (3000K, CRI >90). 1 COB LED, 55,000h L70 B10. Optics: 12°–66° adjustable zoom (magnet). Body: CNC-machined Anticorodal aluminium, anthracite finish, tempered extra-clear glass screen. IP66, IK08, -20°C to +50°C, Class III. Size Ø80×123 mm, 1.1 kg. Features: Casambi control, IPS protection, glow wire 960°C. Accessories: snoots, honeycomb louvre, spike, magnet.

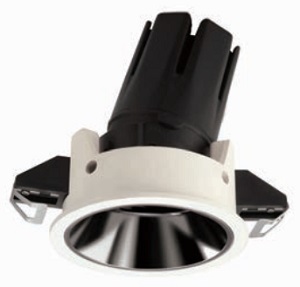

Dot.com come with Small version only needs 25mm of width, a nearly invisible appearance yet with visible impact. The Medium range includes an adjustable version - with tilting possibility of 30° - ideal for instance to emphasize an artwork on the wall. With an output up to 12W per luminaire, the Large range is the most powerful within the Dot.Com series. It comes in both recessed and surface mounted solutions. The luminaire is not only limited to spotlight beam angles, it also has linear wallwashers in its range for a soft, even light effect on vertical surfaces. These come as single luminaires, as modules to fit in the magnetic profiles and as a bespoke trimless profile solution, perfect to adapt the light to your specific desires.

Precise engineered rigid linear fixture with IP68 for pool lighting and water features with challenging requirements.

Submersible up to 1 m (depths down to 5 m are also possible after consultation your LED Linear™ partner).

Chlorine resistant up to 5 ppm and even higher resistance during shock treatment.

Homogeneous lines of light up to 4 m in single piece.
