LIGHTFORMS

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

LF157026

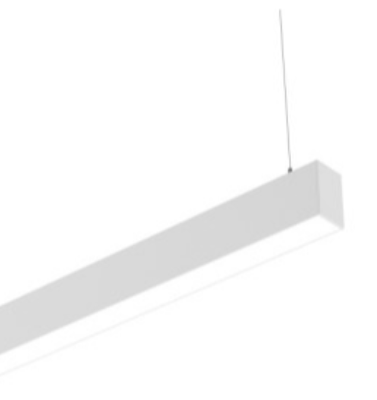

Lightplane 1S features a narrow, 25mm linear channel and provides direct illumination from a minimalist form. The fixture is available in suspended, wall and surface models. Driver is REMOTE.

Specification

Power

17.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1198LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.462 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard) with an outer casing, code 83064 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.

LINEALIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 659 lm, with a 109.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66.
