LF157039

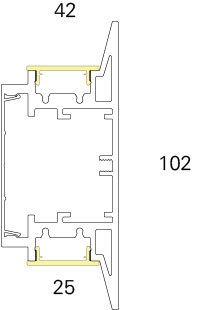

Lightplane 1 Wall Grazer is designed with a minimalist profile for wall-mount, dual direction (indirect and direct) wall grazing applications. The sleek design allows for integral driver. See Lightplane 1 Wall Grazer for single direction (indirect OR direct) distribution.

Specification

Power
74.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2240LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; measurement Ø110mm; narrow mounting trim with a cutout of Ø100mm; luminaire's weight is approximately 420g; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; degree of housing protection according to DIN EN 60529 (IP54)
XAL
RECESSED LINEAR LIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 70°; high quality reflector with micro-faceted, aluminum-vaporised surface; ;CCT 4000 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90; Rg: 99 | Rf: 92 | R{1-15}: 90; MR 0.81 | MDER 0.74; IP20; PC2; 36; incl. converter, Tunable white [Dali-2] 2700 – 5000 K (optional)


LINEALIGHT
WALL LIGHT
INDOOR LIGHTING

Pound_Wall, created to adapt to any type of wall-mounted technical lighting needs, uses a new joint type that allows the product to be adjusted 90° on the vertical axis and 350° on the horizontal axis. Single emission wall lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs.The luminaire body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating. The ingress protection degree is IP20.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight in die-cast aluminium with tool-free installation using a patented ball catch system. Features jet black trim, three wide flood light elements (71° beam), symmetrical distribution, and chrome micro-faceted reflector. Offers 2700K light, CRI ≥90, MacAdam ≤3 SDCM, and ≥85% flux after 50,000h. Passive LED cooling, IP20.
