LIGHTFORMS

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

LF157086

Lightplane 6 is a large, linear luminaire that provides direct or indirect illumination in suspended, wall and surface-mount models. The luminaire features an integral driver along with a high impact satin diffuser. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+ White.

Specification

Power

74.4W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

5218LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LUCE & LIGHT

WALL LIGHT

OUTDOOR LIGHTING

wall mounted for outdoor applications, single beam; surface mounted (wall); Power consumption: 3W; Power supply: 24Vdc; Lumen output at source: 147 lm (3000K, CRI >90); Delivered lumen output: 128 lm (3000K, 22°, CRI >90); 1 power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K; Optics: 22°: optical system consisting of a high-efficiency TIR lens

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

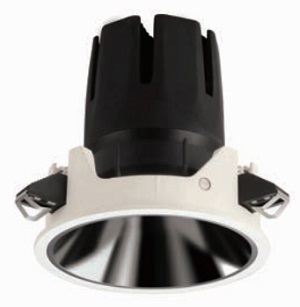

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 powerled LEDs. The device body is made of brass and features a chrome finish, processed by means of electroplating. The ingress protection degree is IP44; the total weight is of 0.073 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be wall lights or ceilingmounted, with a mm diameter hole (in plasterboard) with an outer casing, code 84901(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

UNILAMP

UNDERWATER LIGHT

OUTDOOR LIGHTING

ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.
