LIGHTFORMS

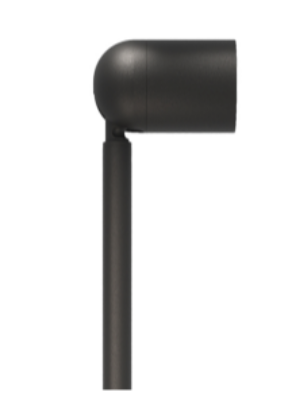

Single emission uplights for outdoor application. The warm white LED light source with a diffused light distribution is composed of 1 powerled LEDs. The luminaire body is made of aluminium 6026 and features a anodised aluminum finish, processed by means of 20 µm anodizing. The ingress protection degree is IP67, IK09.

PRIMA Recessed ceiling downlight with connecting cable for installation into concrete ceilings or suspended ceilings both indoors and out. With symmetrical wide beam light distribution. Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Colour graphite or white Clear safety glass Reflector surface made of pure aluminium Luminaire housing with 2 fixing claws and guide screws

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, wall washer lens with optical structure and integral, adjustable glare shield, tilt range: 0‑20°, lockable, with Heatslide mechanism for optimal heat dissipation, 0,8 m cable H07RN‑F3G1, integral driver (AC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 25° / 75°, luminous flux: 672 lm, wattage: 19 W, delivered lumens 35 lm/W, protection type IP68 (1,5 m), protection class I, impact resistance IK10, dimensions: Ø 220 mm, width 152 mm, weight 4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Protection class IP68 – up to 3m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 180° or 90°. Operating mode: constant current. POW-LED cold white, warm white, neutral white, CC POW-LED RGB. Operating mode: constant voltage. POW-LED cold white, warm white, neutral white, CV. Multichip POW-LED RGB-W. POW-LED-Platine temperature control (NTC). Cable gland PG16/21, marine grade 316Ti stainless steel. Temperature-resistant silicon seal. Toughened safety glass. Supplied with 3 m cable
