LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

LF157043

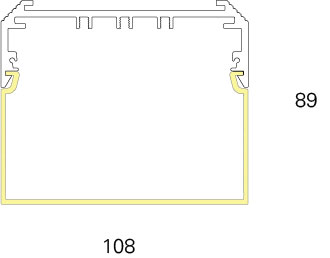

Big Triplane features three-side illumination from a 108mm lensed channel. Extremely efficient, the white opal, acrylic lens is impact-resistant. Individual or continuous row mounting. Remote driver. Available in suspended and surface models.

Specification

Power

37.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2762LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

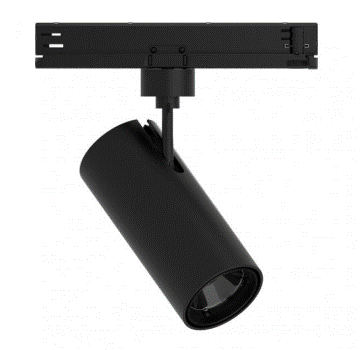

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

RGBW Colour Changer. IP67. Class I. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. LED circuit board with WEEF Colour Boost Technology. DMX Interface. For other control interface options to suit specific project requirements, contact WEEF. Luminaire installation blockout and sealable junction box included in supply
