ACCLAIM

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

LXEA-LXCX-OPXR

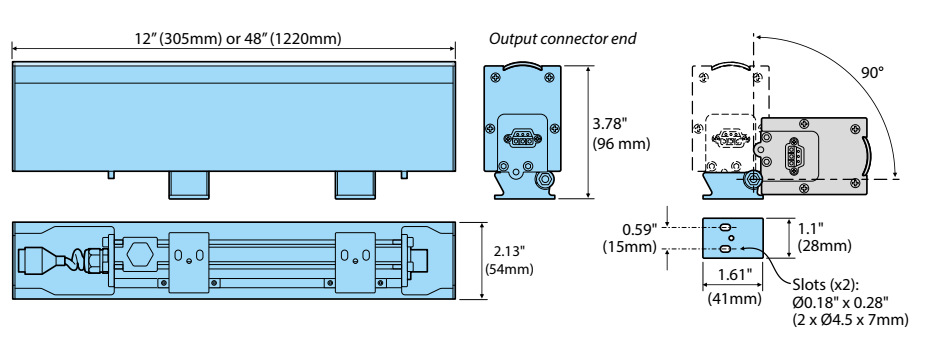

Part of the extensive Linear One® family, these attractive aluminum-bodied, natatorium-ready (IP66) linear fixtures are available in 1’ and 4’ lengths and are easily interconnected in series to simplify installation. Flexibility is key, with a wide choice of configuration combinations, including: multiple emitter types, a full range of TIR optics, plus glare shields and louvers. All of which are fulfilled through our Acclaim Modular system in Los Angeles to ensure industry-leading delivery times. Control is achieved using the industry standard DMX-512A format, with RDM for remote configuration. The internal auto-sensing power supply within each unit can accept mains inputs between 100 to 277VAC at 50 or 60Hz.

Specification

Power

18W

Color Temperature

3000K

Light Source Type

LED

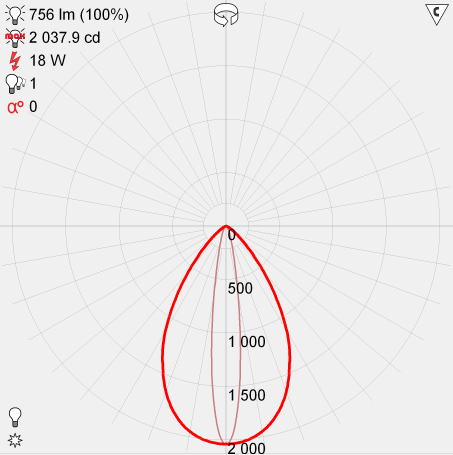

Lumen Output

756LM

Finishing

SILVER

IP Rating

IP66

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LUMASCAPE

UNDERWATER LIGHT

OUTDOOR LIGHTING

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 54° / 11°, luminous flux: 4225 lm, wattage: 48 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 192 × 162 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface.

COLORS

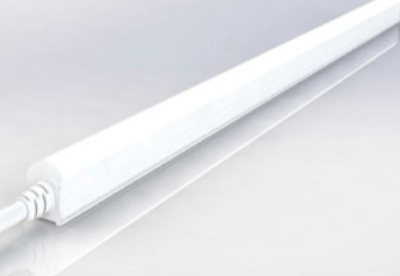

LED NEON TUBE

OUTDOOR LIGHTING

The luminaire high light transmittance, high purity silica gel material, the ingress protection degree is IP65, IK08. Unique optical light distribution structure design, 360° light output uniformly without shadows. Skin-friendly surface treatment, comfortable touch, good flexibility, and simple shape. Product application for office lighting, decorative lighting, artistic lighting, modeling contrast.
