ACCLAIM

Kocca 1.2

wall mounted for outdoor applications, double beam; surface mounted (wall); Power consumption: 7W, 15W; Power supply: 230Vac; Lumen output at source: 1314 lm (3000K, 15W), 368 lm (3000K, 7W); Delivered lumen output: 204 lm (3000K, 140° asymmetrical, 7W), 646 lm (3000K, 140° asymmetrical, 15W), 956 lm (3000K, diffuse version); 2 power LEDs, 1/4 ANSI BIN (7W version), 2 High Intensity power LEDs, 3-step MacAdam (15W version), 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Op

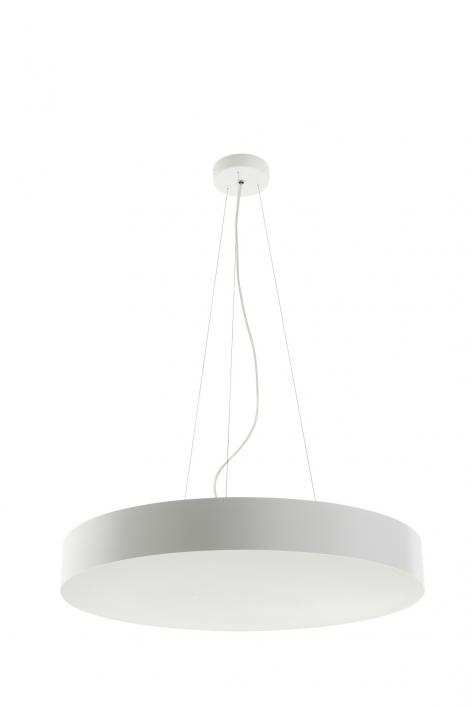

Suspended mount downlight luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

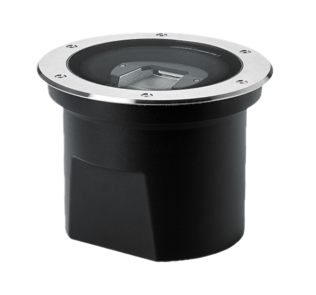

IP65 Spotlight body, bracket and closure flange made of AISI 316L stainless steel with pickling and passivation treatment. With the addition of SurfShield a special scratch-resistant finish treatment that ensures increased resistance of the steel to chemical and atmospheric aggressions. Provided with surge protection electronics and protection against polarity reversal during wiring. Supplied with 5M of cable to powered a 24V CV transformer to be wired in parallel. IP65/IP68, IK08

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three spot round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 15°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector.
