ACCLAIM

Compact spotlight complete with adapter for installation on low voltage track (48V). The body is made of painted die-cast aluminium, with a passive dissipation system that ensures optimal thermal management.

Esem Mid 1.1

recessed downlight for indoor applications; recessed (ceiling, wall, shelf); Power consumption: max 3W (3 power LEDs x 1W); Power supply: max 350mA; Lumen output at source: 309 lm (3000K, 350mA); Delivered lumen output: 220 lm (3000K, 350mA, 22°); 3 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K; Optics: 11° tiltable ±20°, 22° tiltable ±20°, 30° tiltable ±20°, 20°x45° tiltable ±20°; CRI Colour Rendering Index: 80

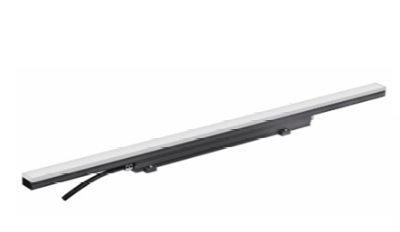

Linear XTR Direct View is a direct view LED linear fixture designed for maximum run length. Using custom internal circuitry and advanced power systems, it allows for interconnection of up to 700’ of product, and up to 1400’ on a single driver when controlled in group mode. Available in multiple color temperatures of white or color-changing, it is perfect for applications where longdistance runs are desired.

Eclectic Ø70. Adjustable Downlight (35º tilt, 360º rotation). “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 47º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP20.
