APEX

WALLWASHER

OUTDOOR LIGHTING

AR655

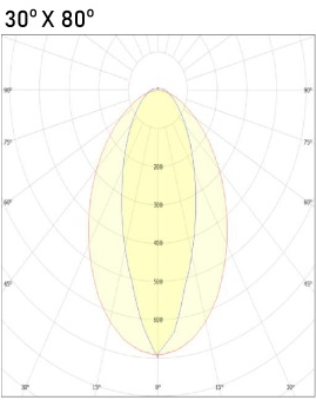

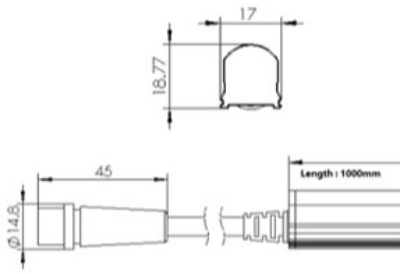

APEX linear Wallwasher luminaire light, available in 3 different beam angle 30°x80°, 45°x85° and 60°x95°. Luminaire dimension (H)18.77mm x (W)17mm x (L)1000mm. 70LEDs/M. IP65

Specification

Power

18W/M

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1180LM/M

Finishing

WHITE

IP Rating

IP65

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 537 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.500 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 160 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

FLOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed luminaire with LED light source. 220-240V & dimmable 1-10V power supply included. The ingress protection degree is IP20.

LUCE & LIGHT

SPOTLIGHT

INDOOR LIGHTING

Spot 5.4 is a surface mounted (ceiling, wall, floor, spike, pole); Power consumption: 52W; Power supply: 110-230Vac; Lumen output at source: 6398 lm (3000K); Delivered lumen output: 5025 lm (3000K, 34°); 1 COB LED, 2-step MacAdam, 100 000h L80 B10 (Ta 25°C); LED colour: 2700K; Optics: adjustable 14°x65°; CRI Colour Rendering Index: 80; Body material: body made of ANTICORODAL 6026 low-copper-content aluminium alloy for excellent resistance to corrosion, made on a CNC lathe.

DELTALIGHT

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Dot.com come with Small version only needs 25mm of width, a nearly invisible appearance yet with visible impact. The Medium range includes an adjustable version - with tilting possibility of 30° - ideal for instance to emphasize an artwork on the wall. With an output up to 12W per luminaire, the Large range is the most powerful within the Dot.Com series. It comes in both recessed and surface mounted solutions. The luminaire is not only limited to spotlight beam angles, it also has linear wallwashers in its range for a soft, even light effect on vertical surfaces. These come as single luminaires, as modules to fit in the magnetic profiles and as a bespoke trimless profile solution, perfect to adapt the light to your specific desires.
