LINEALIGHT

RECESSED LINEAR LIGHT
OUTDOOR LIGHTING

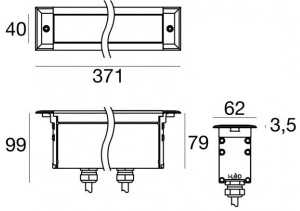

ARCHILINE_A_81603W27

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1812 lm, with a 148.5 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67,IK10.

Specification

Power
13.5W/350MM
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1174LM/350MM
Finishing
ALUMINIUM
IP Rating
IP67
Color Rendering
CRI80
Driver
1-10V Driver

See more

PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
The Eclipse Round is a recessed, tilt behind, adjustable downlight with a Ø80mm bezel and features a beautifully sculpted anti-glare baffle inside a Ø32mm aperture. Unique, elegant small aperture. 360° Rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires
LUMASCAPE
WALL LIGHT
OUTDOOR LIGHTING

The sDelta-8 is a surface-mounted luminaire is available with 3, 6, or 9 LED. Its simple cylindrical drum design complements classic and contemporary applications. Also available in an RGBW version for use with ZDClink® Controllers.

LINEALIGHT
WALLWASHER
INDOOR LIGHTING
Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 360 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.103 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 2010 x 10 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

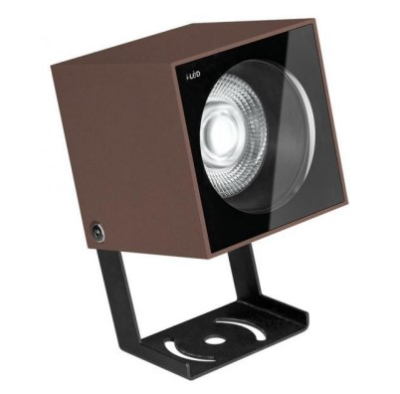

PLATEK
FLOODLIGHT
OUTDOOR LIGHTING

Surface Floodlight in die-cast body aluminium alloy with very low copper content. The product is painted continuous two step paint process (epoxy-based primer + polyester base color finisg) which allows to generate a single thick protective coating which generates aprotective barrier against atmospheric agents and UV rays. IK07
