LED LINEAR

SURFACE MAGNETIC TRACK LINEAR

INDOOR LIGHTING

ULTIMA-S NANO WHITE IP40_20W

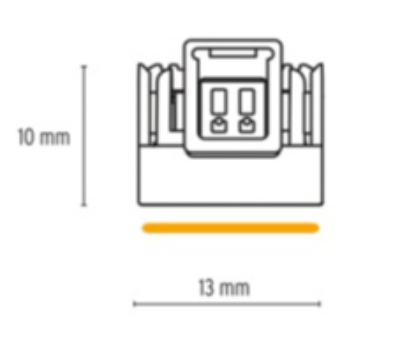

ULTIMA linear light available in stand-alone version or 24V track version which fits in the dedicated track system. Various cabling configurations. And mounting possibilities for a full design freedom. The stand-alone version presents ULTIMA in its most compact form as a system. Its cross section of 10 mm x 13 mm (H x W) makes it an ideal candidate for finesse integrations or confined spaces. Ideal for furniture or architectural integration, showcase or display lighting, installation on grid ceilings or as surface mounted.

Specification

Power

20W/M

Color Temperature

3500K

Light Source Type

LED

Lumen Output

1840LM/M

Finishing

BLACK

IP Rating

IP40

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

ERCO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Luminaire: cast aluminium, black powder-coated, designed as heat sink, with connection cable L 1m. Gimbal suspension: polymer, black. Luminaire can be tilted from 0° to 40°, and can be tilted through 60° in the longitudinal direction of the channel.

XAL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Square ceiling mounted spotlight made of aluminium; surface jet black powder coated; Inner colour lacquered in jet black; 20° tiltable; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3500 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90; min. 90% of luminous flux after 100000 operating hours

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98672(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
