ILIGHT

CONTROL SYSTEM

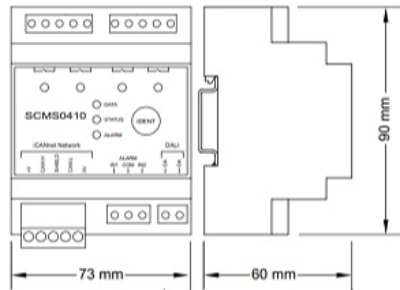

SCMS0410

This 4 channel 10 amp switching unit provides outstanding features and performance at a truly competitive price. It is rated at a maximum total load of 40 amps of continuous inductive lighting load. This unit is designed for switching lighting loads of most types or can be utilised where volt free switching is required. With iLight network connectivity, it has the ability to be linked with a virtually limitless number of other products to build up to any size of system.

Specification

Power

Color Temperature

Light Source Type

Lumen Output

Finishing

GREY

IP Rating

IP20

Color Rendering

Driver

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, luminous flux: 4060 lm, wattage: 46 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 190 × 160 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP20; the total weight is of 21.11 kg. The device features protection class I and can be ceiling-mounted, with a 955 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

SPARK

SPIKE LIGHT

OUTDOOR LIGHTING

Outdoor Spike light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for garden, balconies terraces and walkway application.
