BEGA

Cylindrical spotlight in aluminium; surface black powder coated; 350° rotatable and 90° tiltable; with surface mounted housing; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

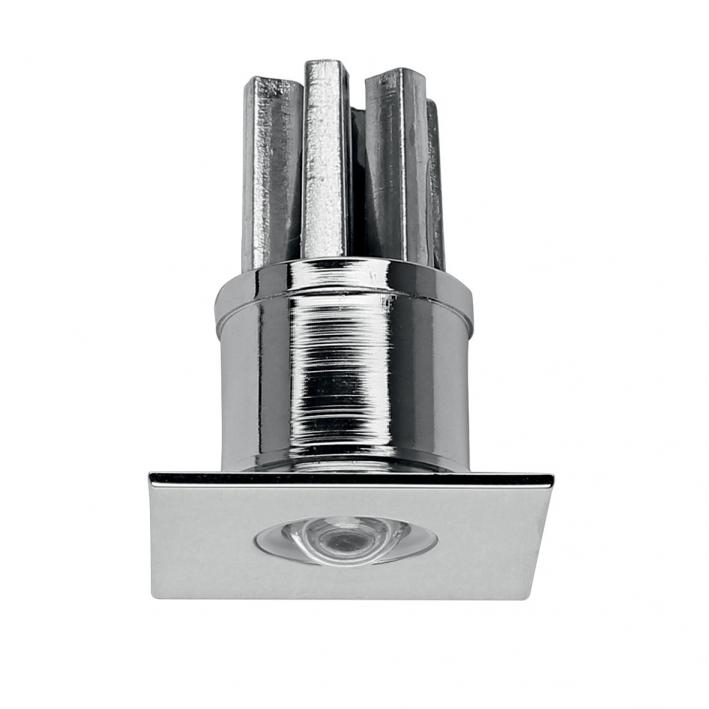

Single emission downlights for indoor application. The RGB LED light source with a wide flood light distribution is composed of 3 powerled LEDs. The device body is made of brass and features a chrome finish, processed by means of electroplating. The ingress protection degree is IP44; the total weight is of 0.079 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84901 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

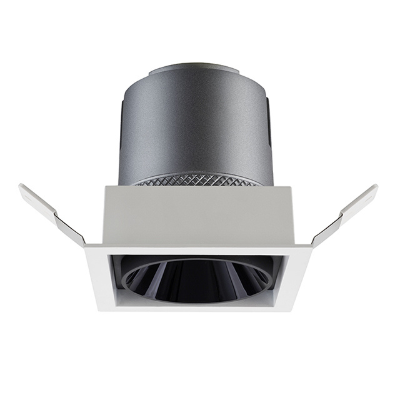

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 490 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 40 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Outdoor wall-mounted luminaire come with wide flood optic. The luminaire consists of an optical assembly upper cap and base for fixing to the wall. The optical assembly upper cap and base are made of die-cast aluminium alloy coated with liquid acrylic paint in high level of resistance to weather and UV rays. Transparent tempered sodium, calcium safety glass with customised grey serigraphy 4 mm thick joined to the optical assembly with silicone. The adjustable fixing bracket is made of painted aluminium. It has a single stainless steel M14x1 cable gland and FEP outlet cables L=150mm, electronic circuit with warm white LED and highly reflective thermoplastic internal reflector. IP66, IK07
