ECOSENSE

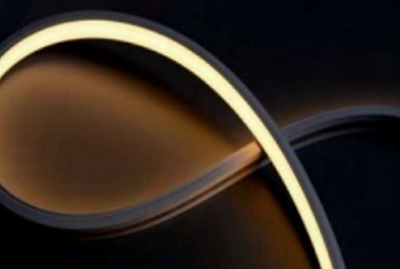

Linear lighting system SKYLINE series links two points together with an outright line. The line shuttle flexibly and freely in space like horse off the reins to form a myriad of creative styling, bringing up brand-new lighting experience with the charm of purest linear.

Pendant LED luminaire with direct beam made of high-quality extruded aluminium profile; white powder-coating finish; luminaire incl. white canopy (110mm x 65mm x 36mm) with transparent feeder cable as well as cable hangers ; ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 16W – Low Power; Dimensions of the profile channel (LxWxH): 1271mm x 50mm x 80.5mm.diffusor made of Polymethylmethacrylate clear with microprismatic plate. (UGR<19)

Floor or ground-recessed luminaire designed to use white monochrome LED lamps, a fixed optic and powered with a continuous current of 350/500mA. The round frame with no visible screws and the optical assembly are made of AISI 304 stainless steel with an extra-clear, sodium-calcium tempered glass cover. The luminaire is fixed to the outer casing using special locking seals that hold it in place. The unit comes complete with LED circuit and methacrylate lens. The product's wiring system features an A2 stainless steel cable gland with a 1800 mm long H05RNF type 2x1 mm² output power cable. The cable is equipped with an anti-transpiration device (IP68) that consists of a silicone-coated joint located on the power cable. An outer casing is available for installation and can be ordered separately from the plastic optic assembly. The glass unit, optical assembly, frame and outer casing together guarantee a maximum static load resistance of 2000 kg. The maximum surface temperature of the glass is less than 40°C.
