UNIOS

LED NEON TUBE

OUTDOOR LIGHTING

AEON FLEX PRO SIDE_15W_RGBW

The Aeon Flex Pro boasts advanced technology and adaptability for large applications across a building facade. Achieve consistent, dot-free illumination with an IP68 rating, and choose from up to 5000mm lengths. The new flexible channel accessory improves rigidity and control in bends. Made with advanced polyurethane for durability and longevity. DIMENSION : L1000*W13*H21MM

Specification

Power

15W/M

Color Temperature

RGBW

Light Source Type

LED

Lumen Output

598LM/M

Finishing

WHITE

IP Rating

IP68

Color Rendering

CRI 90

Driver

0-10V DRIVER

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, mounting bracket powder coated aluminum: 1 long hole Ø 6.5 mm, spacing 15 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, highly efficient aluminum hybrid‑reflector with lens for narrow beam control , with 0,8 m cable H05RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 326 lm, wattage: 5 W, delivered lumens 65 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 61 × 67 × 60 mm, weight 0.47 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

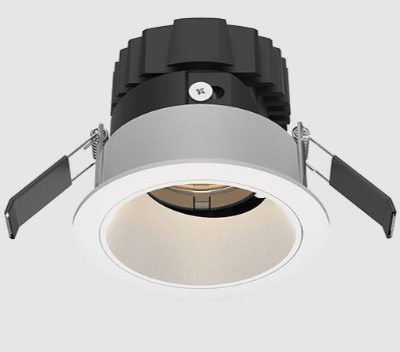

The Eclipse Soft is a fixed recessed downlight with a beautifully sculpted, trumpeted-shaped bezel. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires

LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

H Beam is a compact and streamlined, suspended or wall mount fixture. The extruded aluminium channel provides both direct and indirect illumination. Integral driver configuration with flush lens. Individual or continuous row mounting. A low UGR option is available with a prismatic lens.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
