CLEAR LIGHTING

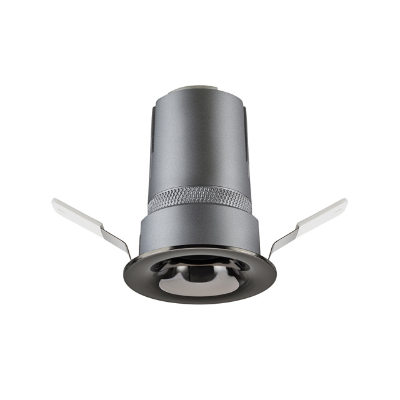

Linear 5 optic element recessed miniaturised luminaire. Using LED lamps with a high colour rendering index and a different colour temperature allows dynamic light modulation to be obtained. Main body with die-cast aluminium radiant surface, version with perimeter surface frame. Metallised, thermoplastic, high definition Opti Beam reflectors, integrated in a set-back position in the anti-glare screen.

IP68, dot free linear light line with a 16 mm x 16 mm cross section. Opal PVC extrusion body sealed with ultrasonic welded end caps and a twin barrier against water ingress. Special PVC material composition, which is Chlorine resistant for continuous immersion in water with chlorine concentration up to 5 ppm. Length are freely configurable between 544 mm and 5,044 mm in steps of 62.5 mm. Fixture comes with a backside cable exit with 5 m open end cable (chlorin resistant). Light source assembled

Step light for outdoor applications; surface mounted (wall); Power consumption: 12W; Power supply: 230Vac; Lumen output at source: 1512 lm (3000K); Delivered lumen output: 736 lm (3000K, white finish); 36 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 3000K; Optics: asymmetrical; Upward flux fraction: 5,32% (white, grey finish); 0,14 % (cor-ten, anthracite finish); CRI Colour Rendering Index: 80; Body material: body in die-cast aluminium; Finishes: anthracite; RAL finish on request; Screen material: screen in serigraphed extra-clear microprismatic glass; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP65; Impact resistance: IK08; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +45°C; Dimensions: 209x101x32 mm.

Slimline 1.25 is a compact and streamlined luminaire with a 33mm, extruded aluminum channel that provides direct only or indirect/direct illumination. The fixture can be configured with linear lamping, spots or combinations of the two. Integral driver. High-impact acrylic lens. Individual or continuous row mounting. Available in suspended, wall or surface-mount models.
