CLEAR LIGHTING

Following formalighting's Eco Design philosophy, Spotify Adjustable Square provides high visual comfort thanks to a deep recessed LED Engine.Available in 2 sizes 77x 77; and 100 x 100, Trim & Trimless versions. with modular and tool-free LEDengine and optical accessories site changeable options. Tiltable vertically 0-32° tilt and rotatable horizontally 355°. The color temperature avaiable 2700k,3000k,3500k and 4000k.

Single emission lines for outdoor application. The warm white LED light source is composed of 210 topled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.95 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted with an outer casing, code 98844 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

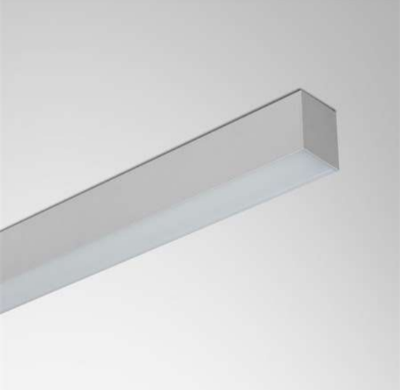

A continuous-row LED lighting system created by trunking unit and LED luminaire. It appears a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking rail are perfectly matched to each other. Optics available 30°, 60°, 90°, 120°, Asymmetrical, Double asymmetrical and Diffuser.

Fixing base in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. AISI 301 Stainless-steel end caps for the extruded parts. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 08. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
