CLEAR LIGHTING

Single emission submerged for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The luminiare body is made of aisi 316l steel and features a steel finish, processed by means of shot peening. The ingress protection degree is IP68,IK10.

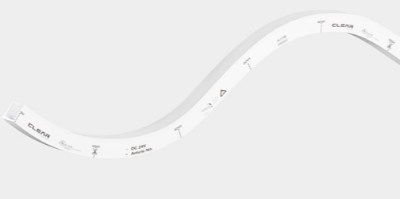

Silicone Neon Strip adopts bi-color/ tri-color co-extrusion process, featured baby-skin feel in touch and uniform & natural light in function. It shows great resistance to saline solutions, acid & alkali, corrosive gases, fire and UV. The series include Outline Neon for delicate micro-scene outlining, Magic Neon for innovative styling and Architecture Neon for facade and under-water lighting. The ingress protection degree is IP65,IK08.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, frosted glass with diffuse light distribution as orientation luminaire , for loads up to max. 2000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 2 stainless steel screws, with polypropylene recess housing, cable gland: M20 (stainless steel), connecting terminal: 3 pole, with 1 m cable H07RN‑F3G1, integral potted driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 108° / 112°, luminous flux: 566 lm, wattage: 19 W, delivered lumens 30 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions (L×H×W): 647 × 40 × 84 mm, weight 3.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
