LS321LED - 6H6 ME

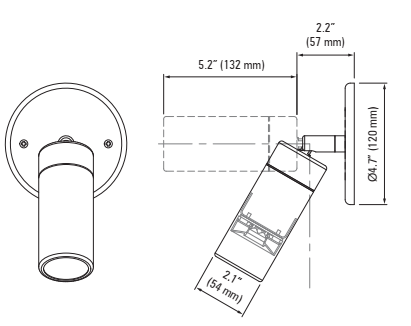

The LS321LED Pagoda is a compact, adjustable, direct or indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from either copper or powder-coated aluminium, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

Specification

Power
6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
512LM
Finishing
BLACK
IP Rating
IP65
Color Rendering
CRI >80
Driver
ON/OFF DRIVER

See more

EWO
WALL LIGHT
OUTDOOR LIGHTING

A–Series Outdoor Pole light made of die-cast aluminium material and polyester powder coating finish. Anthracite finish color and safety glass. Luminaire available in Pole mount and Wall mount version. FO420 come with 0°-90° adjustable. Suitable for Building area, high bay, street or walkway lighting application. IP66, IK08

LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1074 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.690 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 270 x 90 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


LED LINEAR
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

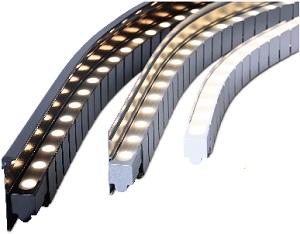

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban

gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.
